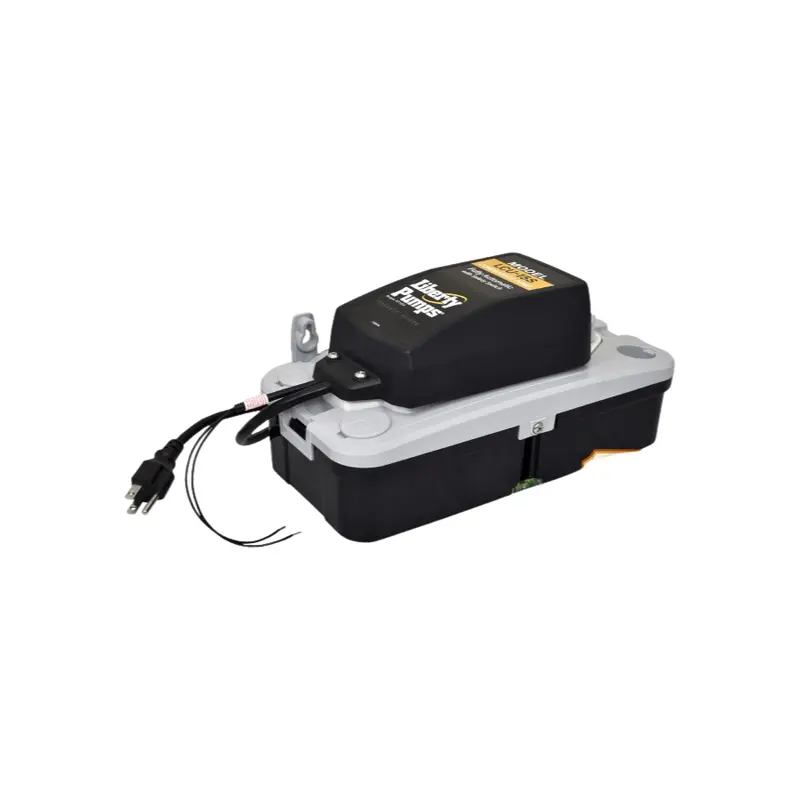

Liberty Pumps LCU-15T Automatic Condensate Pump, 115V without safety switch and 20 ft of included discharge tubing
Brand: Liberty Pumps | SKU: LCU-15T
Product Overview
The Liberty Pumps LCU-15T automatically collects and pumps condensate from compatible high-efficiency furnaces, air-conditioning equipment, dehumidifiers, and similar appliances. This 115V model is rated for a maximum head of 18.5 ft and does not include a built-in safety switch. It also includes 20 ft of discharge tubing. Confirm the available power, lift, discharge route, and appliance connection before ordering.
Key Features
- Automatic condensate removal with a high-impact ABS tank
- 1/9 HP, 115V motor with thermal protection
- No built-in safety switch on this model
- 20 ft of discharge tubing included
- Removable check valve, visual bubble level, and wall-mount option
Common Uses
- Condensate drainage from high-efficiency furnaces and A/C equipment
- Condensate removal for compatible dehumidifiers and ice machines
Technical Specifications
- Model: LCU-15T
- Power: 115V, 1/9 HP
- Maximum head: 18.5 ft
- Tank capacity: 1.58 US qt
- Safety switch: Not included
- Discharge tubing: 20 ft included
- Maximum fluid temperature: 140°F at 50% duty cycle
Dimensions
5.5 in. H × 11.25 in. L × 5.625 in. W; model weight 6 lb.
Compatibility & Installation Notes
Use the 3/8 in. outside-diameter outlet and plan a lift and hose route within the pump’s performance limits. Follow Liberty’s installation manual for electrical connection, safe drainage, and any separate overflow protection required by the equipment.
Frequently Asked Questions
Does LCU-15T include a safety switch?
No, this model does not include a built-in safety switch.
Is discharge tubing included?
Yes, 20 feet of tubing is included.
Why Buy Liberty Pumps LCU-15T from Big Frog Supply?
The LCU-15T offers a 115V condensate pump with 18.5 ft of maximum lift and the base configuration plus tubing needed for the right installation.
