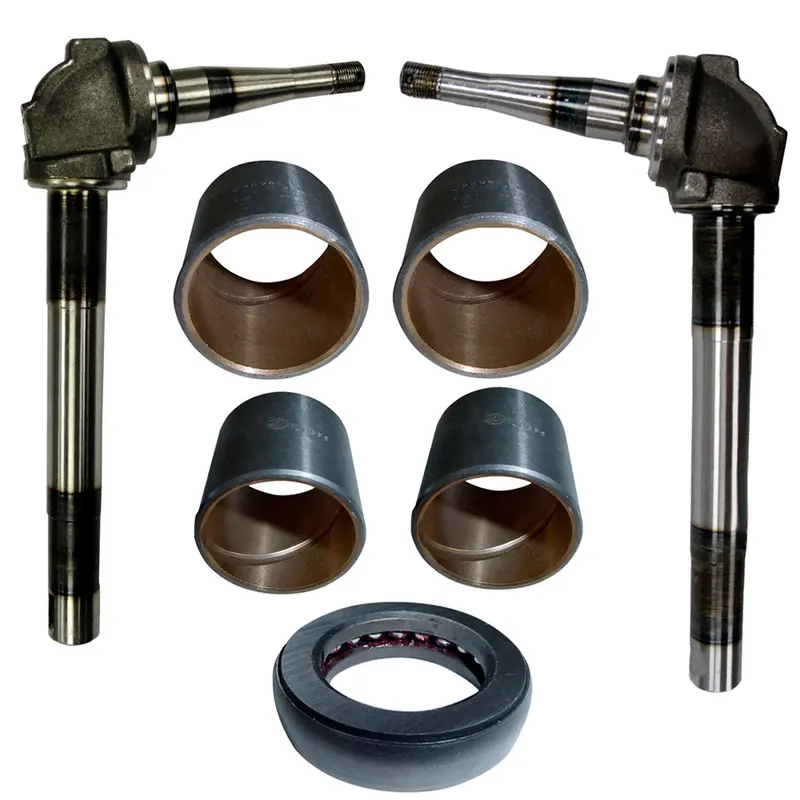

One New Aftermarket LH / RH Spindle Bushing Kit
Tech Info:
-(1) Right Hand Spindle
-Tech Info:
-Right side as sitting in the tractor seat
-10.750″ machined upright shaft
-1.250″ shaft outside diameter
-1.187″ inner bearing diameter
-0.750″ outer bearing diameter
-Machined for 1/4″ x 7/8″ key
-Replaces Part Numbers: F3NN3105AA, 8N3105
-
-(1) Left Hand Spindle
-Tech Info:
-Keyed
-Side
-Axle Length 5 1/4″
-Diameter 1 1/4″
-ID 1 3/16″
-OD 3/4″
-Shaft Length 10 11/16″
-Type Left Hand
-Replaces Part Numbers: F3NN3106AA
-
-
-(2) Thrust Bearing
-Tech Info:
-Bearing Type Spindle Bearing
-Grease Greaseable
-ID 1.350″
-ID Type Round
-OD 2.200″
-Sourced Import
-Width Overall 0.620″
-Replaces Part Number: 957E3123A
-
-(1) Spindle Bushing Kit
-Kit Includes:
-Front Spindle Bushing
-Tech Info:
-4 used per tractor,
-1.255″ inside diameter,
-1.378″ outside diameter,
-1.498″ long,
-Must be honed or reamed to size when installed
-
-
-Spindle Bushing
-Tech Info:
-ID 1.350″
-Material Steel
-OD 1.480″
-Width 1.500″
-
-Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940
Made to Fit Ford/New Holland:
Tractor Models: 9N, 2N, 8N, Jubilee, NAA
Model Breaks: Fits Upper & Lower
Replaces Part Number(s): 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109
Tractor Models: 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 701, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000 3 cylinder, 2000 4 cylinder, 2031, 2100, 2111, 2121, 2131, 2150, 2300, 2310, 2600, 2600V, 2610, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3600, 3600V, 3610, 3900, 3910, 4000 3 cylinder, 4000 4 cylinder, 4000SU, 4031, 4100, 4110, 4120, 4131, 4600, 4600SU, 4610, 6000
Model Breaks: Upper only, With Standard adjustable wide front, not for heavy duty or industrial axle
Replaces Part Number(s): 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109
