DryConn DBR/Y-600 Black Direct-Bury Connector — 2 Pack
Brand: King Innovation (DryConn) | SKU: 20250
Product Overview

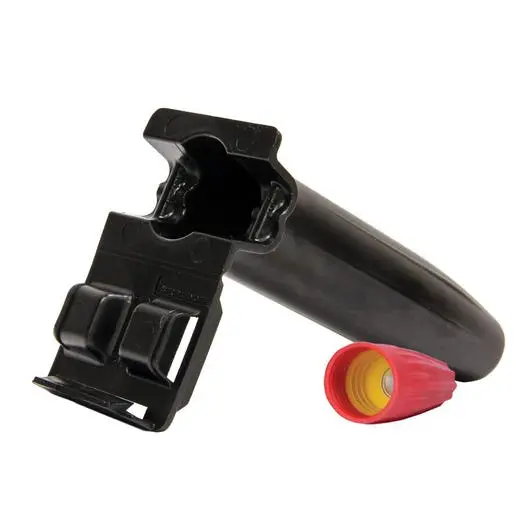

The DBR/Y-600 Black pairs a Red/Yellow Gorilla Nut with a silicone-filled, latching tube. Make the copper-wire splice with the twist-on nut, then seat it in the sealed tube and route the wires through the strain-relief channels. The two-pack serves outdoor and buried connections where a UL 486D sealed system is specified.
Key Features
- UL 486D listed sealed wire connector system for damp, wet, raintight, direct-bury and submersible locations.
- Sunlight- and impact-resistant blended polypropylene tube with silicone sealant.
- Two connector systems per bag.
Common Uses
Compatible copper-wire splices in landscape lighting and other approved wet or buried installations.
Technical Specifications
- Maximum voltage: 600 V building wire; 1,000 V signs or luminaires.
- Copper-to-copper approved combinations; #22–#8 AWG overall wire range.
- Connector temperature rating: 105°C (221°F); sealant range: -45°F to 400°F.
Dimensions
Tube/connector system: 3 11/16 × 1 1/2 × 1 3/16 in. Drawing: A 3.67 in; B 1.18 in; C 1.50 in.
Compatibility & Installation Notes
Turn off power and follow applicable codes. Strip 5/8 in, align wires and lead stranded conductors slightly. Twist the Gorilla Nut clockwise until tight, insert it fully into the filled tube, seat conductors in the channels and latch the lid. Check the approved wire combinations. Do not reuse after removal.
Frequently Asked Questions
Is the 20250 suitable for direct burial?
Yes. King lists the complete nut-and-tube system for direct-bury and submersible locations when installed as directed.
Is the tube alone a wire connector?
No. Make the splice with the supplied Red/Yellow Gorilla Nut, then seal it inside the tube.
How many are included?
Two complete systems are sold in the bag.
Why Buy This Package
The two-pack is a practical quantity for a small number of sealed buried or wet-location connections.
