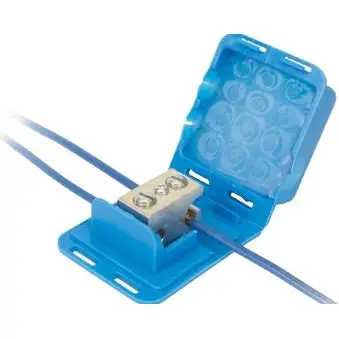

King Innovation 90750 DryConn Aqua Direct-Bury Lug Plus – 5-Bag
Brand: King Innovation | SKU: 90750
Product Overview
The 90750 Lug Plus is a prefilled direct-bury connector for low-voltage utility tracer-wire taps. It lets an uncut main conductor run through side A while a tap enters side B. Compared with the smaller 90220, the Lug Plus accepts specified stranded copper sizes as well as solid copper and steel-core tracer wire. This package contains five complete connectors.
Key Features
- Five Lug Plus systems per bag
- Prefilled, high-impact housing for direct burial
- Uncut main-line tap layout
- Separate solid, stranded, and steel-core conductor ranges
Common Uses
- Low-voltage tracer-wire main-to-tap connections
- Approved copper or steel-core tracer direct-bury splices
Technical Specifications
- Maximum 50 V
- Solid copper #14–#8; stranded copper #14–#6; steel-core tracer #14–#10
- Conductor outside diameter 0.124–0.408 in.
- Tin-plated aluminum lug, zinc-plated screws, non-hardening dielectric sealant
Dimensions
Connector: 1.18 x 2.04 x 2.57 in.
Compatibility & Installation Notes
Turn off power. Strip main and tap 5/8 in. or to the mark on the cover. Follow King Innovation’s set-screw turn instructions for solid copper or steel-core wire and its torque table for stranded copper (15–35 in-lb by gauge). Latch the housing fully and wipe excess sealant. Do not reuse.
Frequently Asked Questions
Can 90750 accept stranded copper?
Yes. King lists #14–#6 stranded copper with gauge-specific tightening torque.
What is the difference from 90220?
The 90750 has a wider approved wire range, including stranded copper; the 90220 is specified for solid conductors only.
Why Buy From Big Frog Supply
Big Frog Supply identifies the 90750 tracer-wire range and package count so you can choose the correct connection for the installation.
