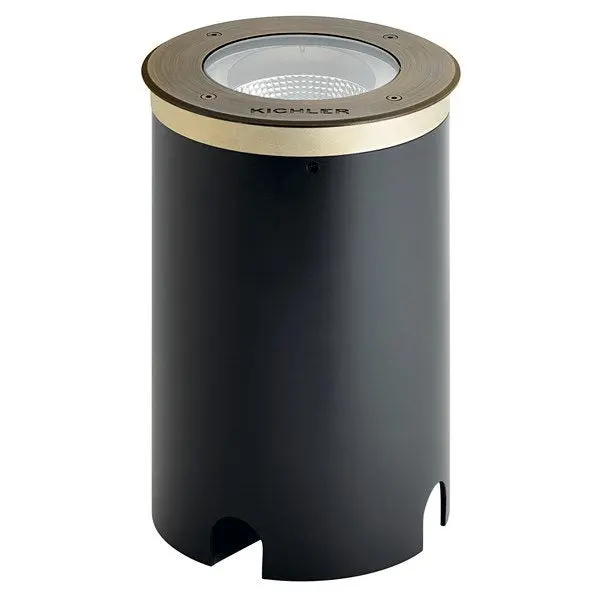

Kichler 16230CBR30 C-Series 1625-Lumen 3000K 45° Adjustable In-Ground LED Well Light – Brass
Brand: Kichler | SKU: 16230CBR30
Product Overview
Kichler 16230CBR30 is a C-Series in-ground well light for an architectural or landscape accent that needs a focused 45° beam. The integrated 3000K LED delivers up to 1,625 lumens. You can adjust the direction of light from outside the housing without opening its factory seal, which helps when fine-tuning the aim after installation. A cast brass housing sits in a protective sleeve with lens gaskets, a potted driver, and strain relief. Plan the burial location, drainage, and operating-voltage range with the installer before ordering.
Key Features
- Up to 1,625 lumens of 3000K light with a 45° beam.
- External aiming adjustment leaves the factory seal intact.
- Cast brass housing, protective sleeve, lens gaskets, potted driver, and strain relief.
Common Uses
In-ground uplighting for building details, trees, and other outdoor focal points where the beam can be aimed after installation.
Technical Specifications
- Model: 16230CBR30
- Maximum output: 1,625 lumens
- Color temperature: 3000K
- Beam angle: 45°
- Integrated LED: 20W C-Series
- Operating voltage: 100–300V
- Wet rated; Centennial Brass finish
Dimensions
- Height: 10.25 in.
- Length: 10.25 in.
- Width: 6.25 in.
Compatibility & Installation Notes
Coordinate the electrical supply, burial depth, drainage, and service access with the installer. A stainless steel trim ring is offered separately by Kichler; confirm the accessory model before adding it to a project.
FAQ
Can the beam be aimed after installation?
Yes. Kichler describes an external direction adjustment that does not require opening the factory seal.
What beam spread does it produce?
The 16230CBR30 has a 45° beam.
Why Buy From Big Frog Supply
Check the verified beam, output, size, and operating-voltage range before choosing an in-ground position for this brass well light.
