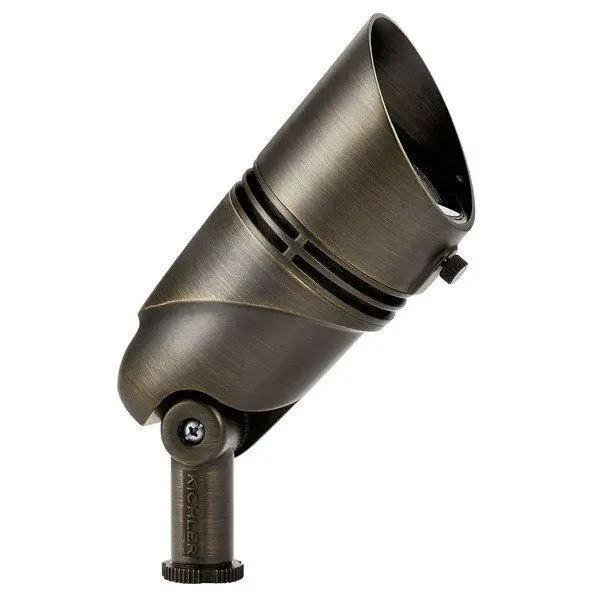

Kichler 16160CBR30 3000K 15° VLO LED Landscape Spotlight – Centennial Brass

Kichler 16160CBR30 3000K 15° VLO LED Landscape Spotlight – Centennial Brass

Brand: Kichler | SKU: 16160CBR30

Product Overview

Highlight a tall, narrow landscape feature with the Kichler 16160CBR30. The Centennial Brass cast-brass head sends 3000K light through a 15° spot, with selectable 1,000- and 1,200-lumen output. Its concentrated beam is suited to a column, slim specimen tree, or vertical masonry feature.

Set the output with Kichler’s magnetic key after aiming the head. Consider the width and distance of the target to avoid overshooting it, and match the clear warm-white color to nearby lights. The wet-rated integrated LED connects to a compatible 12V transformer with adequate capacity.

Key Features

• Selectable 1,000- or 1,200-lumen integrated LED output.
• Focused 15° spot beam with 3000K light.
• Centennial Brass cast brass housing rated for wet locations.

Common Uses

• Brass-finish accents on tall narrow trees
• Clear warm-white architectural spot lighting

Technical Specifications

• Model: 16160CBR30
• Selectable output: 1,000 or 1,200 lumens
• Color temperature: 3000K
• Beam angle: 15° spot
• Light source: integrated LED
• Operating voltage: 9–15V on a 12V landscape system
• Finish: Centennial Brass
• Rating: wet location

Dimensions

• Height: 4.50 in.
• Length: 6.00 in.
• Width: 2.75 in.

Compatibility & Installation Notes

Use a compatible 12V landscape transformer and follow Kichler’s installation instructions. The Lumen Effect System uses a magnetic key to select output; confirm the required control tool and full circuit load when planning the installation.

FAQ

Can the brightness be changed?

Yes. Kichler lists two settings, 1,000 and 1,200 lumens, selected with its magnetic key.

Is the beam suited to a broad wall?

The 15° spot favors a narrow highlight; a flood optic covers a wider area.

Does it need a separate bulb?

No. The LED light source is integrated.

Why Buy From Big Frog Supply

Big Frog Supply identifies the 3000K color, Centennial Brass finish, 15° beam, and two output settings so you can select the intended high-lumen accent.
