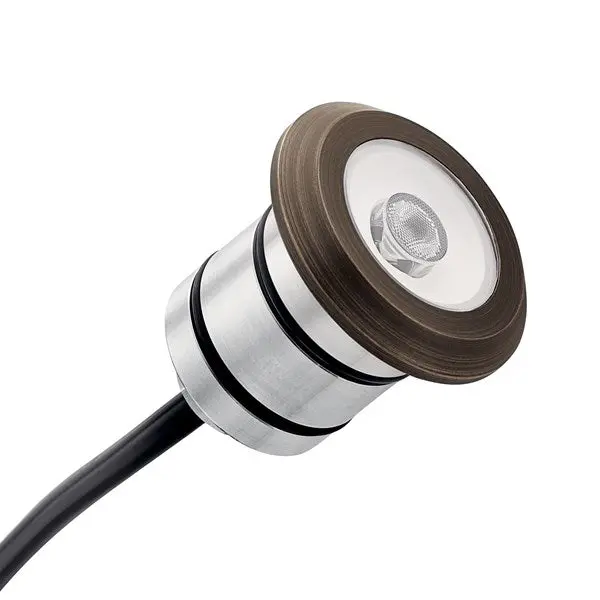

Kichler 16140CBR27 Mini All-Purpose Recessed LED Light, Centennial Brass, 2700K, 100 Lumens

Kichler 16140CBR27 Mini All-Purpose Recessed LED Light, Centennial Brass, 2700K, 100 Lumens

Brand: Kichler | SKU: 16140CBR27

Product Overview

Build a discreet landscape accent into a compatible recessed location with the Kichler 16140CBR27 Mini All-Purpose light. Its sealed integrated LED delivers 100 lumens at 2700K, and the Centennial Brass finish coordinates with other brass landscape details. Three changeable optics—20, 40, and 75 degrees—let the installer select a tight accent or a broader spread to suit the surface. The compact body can be paired with compatible Kichler Mini All-Purpose accessory tops when the project needs a different glare pattern or direction of light.

Choose the location and optic before finishing the hardscape or wall detail. A narrow optic can highlight a small feature, while a wider one covers a larger subject at shorter distance. Kichler lists an IP68 rating and a 9–15 VAC operating range for the light. Verify the mounting cavity, drainage, cable path, low-voltage transformer capacity, and whether an accessory top is needed for the final application. This is an integrated LED assembly rather than a replaceable-lamp fixture. Confirm the required installation method and any walk-over or drive-over conditions in the manufacturer’s instructions; site conditions and accessories affect the finished installation.

Key Features

• 100-lumen integrated LED in 2700K.
• Field-changeable 20-, 40-, and 75-degree optics.
• Compact Centennial Brass recessed design.
• IP68 rating for suitable protected or in-ground placement.

Common Uses

Recessed uplighting for planting, columns, walls, steps, and architectural details where a small integrated fixture is useful.

Technical Specifications

• Model: 16140CBR27; Mini All-Purpose recessed integrated LED.
• Output: 100 lumens; color temperature: 2700K.
• Optics: 20°, 40°, and 75° interchangeable.
• Operating voltage: 9–15 VAC; IP68 rated; finish: Centennial Brass.

Dimensions

Approximately 2.25 in. W × 2.25 in. H. Confirm mounting depth and the selected trim or accessory top.

Compatibility & Installation Notes

Use with a suitable low-voltage landscape transformer and compatible Mini All-Purpose accessories. Follow Kichler’s instructions for recessed mounting, connections, and the intended exposure.

Frequently Asked Questions

Can the beam be changed? Yes. Choose among the supplied 20-, 40-, and 75-degree optics.

Is a separate bulb needed? No. The LED is integrated.

Will an accessory top fit? Use a top listed for Mini All-Purpose 16140 or 16141 and confirm fit for the site.

Why Buy From Big Frog Supply?

Compare the 100-lumen output, 2700K color, and required trim with your project, then review the manufacturer documents in the product resources.
