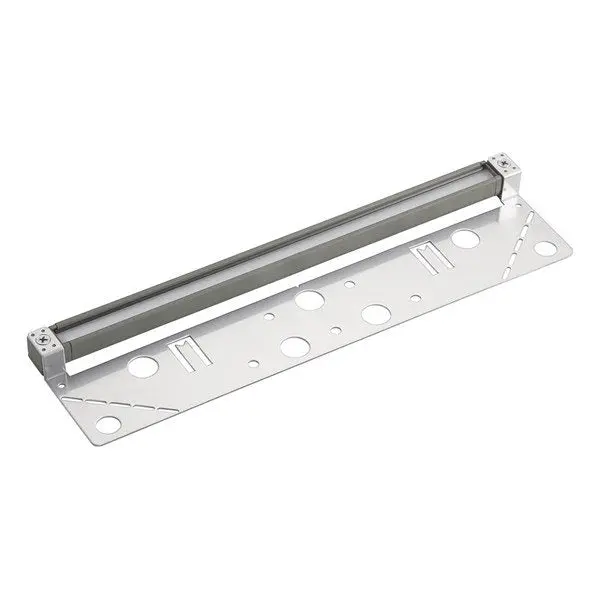

Kichler 16102GRY27 12-Inch LED Hardscape Light, Gray, 2700K

Kichler 16102GRY27 12-Inch LED Hardscape Light, Gray, 2700K

Brand: Kichler | SKU: 16102GRY27

Product Overview

Create an even line of warm light beneath a retaining-wall cap, step edge, or outdoor ledge with the Kichler 16102GRY27 hardscape fixture. Its 12-inch body covers a longer run than the smaller models in the series, and the integrated 2700K LED provides 85 lumens. That output suits an understated wash on stonework or a walking surface. The Gray finish lets the visible fixture edge fit the materials in the landscape, while the sealed, wet-rated design is intended for appropriate outdoor mounting.

The mounting bracket pivots up to 270 degrees, allowing an installer to direct the light after it is positioned. Before ordering, measure the available 12-inch space, check how the bracket will be secured, and plan the cable route behind the masonry. This fixture operates on a low-voltage 9–15 VAC circuit; choose a transformer and wire size for the total connected load and voltage drop. For a long wall, fixture count and spacing should follow the desired lighting pattern rather than assuming one 85-lumen unit will cover the full length. The body is 3 inches wide and 0.75 inches high, so allow clearance for aim and for any installation hardware. Follow Kichler’s instructions for mounting and electrical connections.

Key Features

• 12-inch integrated LED hardscape light with 85 lumens.
• 2700K warm white light and Gray finish.
• Pivoting mounting bracket for directional aiming.
• Wet-rated low-voltage fixture.

Common Uses

Under-cap lighting for longer retaining walls, steps, outdoor masonry, and ledges where a soft downward wash is useful.

Technical Specifications

• Model: 16102GRY27; integrated LED hardscape light.
• Color temperature: 2700K; output: 85 lumens.
• Operating voltage: 9–15 VAC; wet rated.
• Finish: Gray; pivoting bracket.

Dimensions

3 in. W × 0.75 in. H × 12 in. L. Confirm mounting and wire clearance.

Compatibility & Installation Notes

Use with a properly sized low-voltage landscape transformer and cable. Plan spacing and fixture aim before finishing the hardscape.

Frequently Asked Questions

Is a separate bulb required? No. The LED is integrated.

Can the light be aimed? Yes. The bracket pivots to direct light toward the intended surface.

How much light does it produce? Kichler lists 85 lumens for this 12-inch model.
