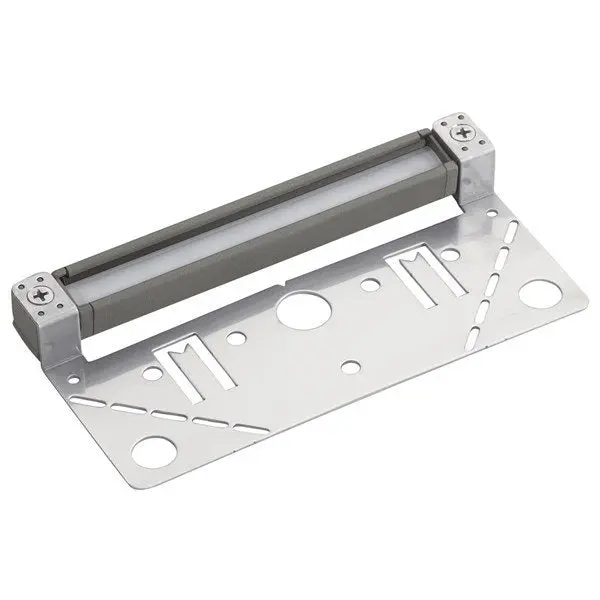

Kichler 16101GRY30 6-Inch LED Hardscape Light, Gray, 3000K

Kichler 16101GRY30 6-Inch LED Hardscape Light, Gray, 3000K

Brand: Kichler | SKU: 16101GRY30

Product Overview

Illuminate a step, short retaining wall, or outdoor masonry edge with the Kichler 16101GRY30 6-inch hardscape light. The integrated 3000K LED gives a warm white, 40-lumen output that is useful for a measured wash below a coping or ledge. Its Gray finish lets the exposed edge coordinate with adjacent stone and other landscape fixtures. The fully sealed housing is wet rated for an appropriate outdoor installation.

Kichler’s bracket pivots up to 270 degrees, allowing the light to be aimed during installation to reduce unwanted glare and show the walking surface or wall texture. Before ordering, measure the available 6-inch run and mounting surface, plan the wire path, and calculate the low-voltage transformer load for the number of lights on the circuit. The fixture operates within 9–15 VAC and measures 3 inches wide by 0.75 inches high by 6 inches long. For a continuous edge, use the lighting layout to determine spacing rather than assuming a single 40-lumen light will cover the whole area. Follow the manufacturer’s instructions for bracket positioning, connections, and any installation clearances.

Key Features

• 6-inch integrated LED hardscape light with 40-lumen output.
• 3000K warm white light and Gray finish.
• Pivoting mounting bracket for directional aiming.
• Wet-rated construction for outdoor hardscape installations.

Common Uses

Under-cap lighting for retaining walls, steps, stonework, and landscape edges where a modest downward wash is desired.

Technical Specifications

• Model: 16101GRY30; integrated LED hardscape light.
• Color temperature: 3000K; output: 40 lumens.
• Operating voltage: 9–15 VAC; wet rated.
• Finish: Gray; pivoting bracket.

Dimensions

3 in. W × 0.75 in. H × 6 in. L. Confirm mounting space and cable route.

Compatibility & Installation Notes

Use a suitably sized low-voltage landscape transformer and wiring. Confirm fixture spacing and aim before finishing the hardscape installation.

Frequently Asked Questions

Is a separate bulb required? No. The LED is integrated.

Can it be aimed? Yes. The mounting bracket pivots for placement.

How bright is it? Kichler lists 40 lumens for the 6-inch model; plan spacing for the surface you want to light.

Why Buy From Big Frog Supply?

Compare the 3000K color, Gray finish, length, and output with the rest of your hardscape lighting plan before ordering.
