Kichler 16026AZT30 VLO Mini LED Wall Wash Light, Textured Architectural Bronze, 3000K

Kichler 16026AZT30 VLO Mini LED Wall Wash Light, Textured Architectural Bronze, 3000K

Brand: Kichler | SKU: 16026AZT30

Product Overview

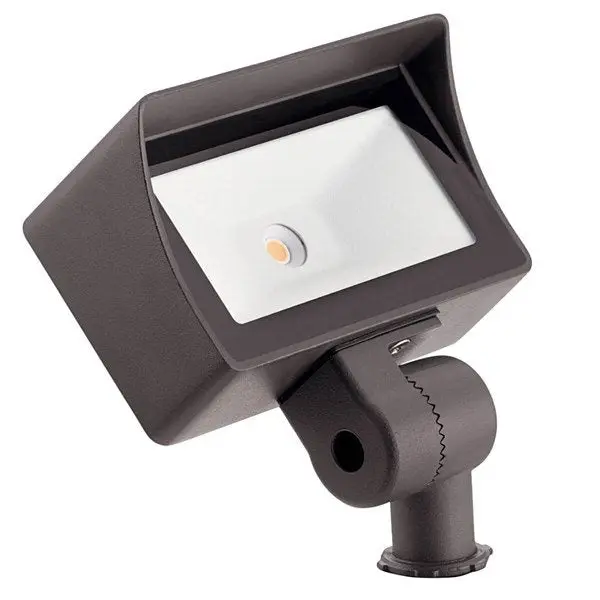

Give a low wall, broad planting feature, or textured surface an even wash with the Kichler VLO mini wall wash. Its NEMA 6 × 5 distribution spreads 3000K warm white light across a wider area than a focused accent spot. The magnetic-key Lumen Effects system provides four selectable outputs—150, 300, 450, and 600 lumens—so the installer can balance the brightness with nearby landscape lighting after placement. The Textured Architectural Bronze aluminum housing gives this model its finish and material; the LED is integrated.

This compact fixture measures 2.25 inches wide, 5.25 inches high, and 4.25 inches long. Plan its position to cover the desired wall or feature without creating unwanted glare toward seating areas or windows. It belongs on a compatible low-voltage landscape circuit, with a specified operating range of 9–15 VAC. Check the transformer capacity, cable run, voltage drop, and mounting method before ordering. Choose 3000K for the color you want across the surface, then set the output on site to match the height and reflectance of the wall. Follow Kichler’s installation instructions for connections, aiming, and any accessory requirements.

Key Features

• Selectable 150, 300, 450, or 600 lumen settings.
• NEMA 6 × 5 wall-wash distribution in 3000K.
• Integrated LED with Textured Architectural Bronze aluminum housing.
• Compact body for landscape wall-wash placement.

Common Uses

Even illumination on garden walls, stonework, broad planting features, and architectural surfaces where a narrow spotlight would leave uneven coverage.

Technical Specifications

• Model: 16026AZT30; VLO mini LED wall wash.
• Color temperature: 3000K; NEMA 6 × 5 distribution.
• Selectable output: 150/300/450/600 lumens; integrated LED.
• Operating voltage: 9–15 VAC; housing: aluminum; finish: Textured Architectural Bronze.

Dimensions

2.25 in. W × 5.25 in. H × 4.25 in. L.

Compatibility & Installation Notes

Pair with a properly sized low-voltage transformer and landscape cable. Confirm mounting position, circuit voltage, and the desired wall coverage before installation.

Frequently Asked Questions

Can I change the brightness? Yes. The four settings range from 150 to 600 lumens.

What does NEMA 6 × 5 mean here? It describes a broad distribution intended to wash a surface more evenly than a narrow spot beam.

Do I need a separate bulb? No. The LED is integrated.

Why Buy From Big Frog Supply?

Compare the 3000K color and Textured Architectural Bronze finish with the surrounding landscape lights before ordering, and review the model specifications for your circuit plan.
