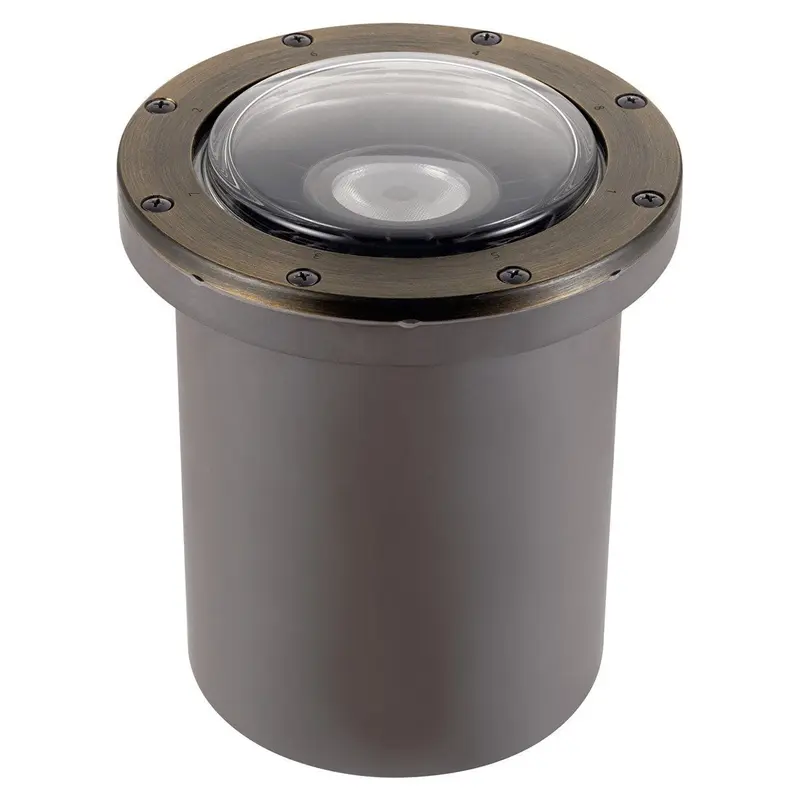

Kichler 16023CBR27 VLO 15° In-Ground LED Accent Light, Centennial Brass, 2700K

Kichler 16023CBR27 VLO 15° In-Ground LED Accent Light, Centennial Brass, 2700K

Brand: Kichler | SKU: 16023CBR27

Product Overview

Light a column, tall tree, or narrow architectural feature from ground level with the Kichler VLO in-ground accent. Its focused 15-degree beam directs 2700K warm white light upward, while the magnetic-key Lumen Effects system lets the installer choose 350, 550, or 850 lumens at the site. That range helps tune the brightness to the subject and surrounding lights after placement. The Centennial Brass housing offers a classic landscape finish, and the integrated LED avoids selecting a separate lamp.

The in-ground design is IP67 rated and Kichler describes it as drive-over rated for a static load up to 4,600 lb when properly installed. That rating does not replace site-specific planning: confirm the intended mounting location, drainage, wiring method, and any applicable traffic requirements with the installer. The fixture is approximately 7 inches wide and long by 8 inches high. It operates on a low-voltage 9–15 VAC circuit; account for transformer load and voltage drop across the wire run. Use Kichler’s instructions for the excavation, connections, and finishing detail so the lens and trim sit correctly in the landscape.

Key Features

• Selectable 350, 550, or 850 lumens using the magnetic-key system.
• Focused 15-degree beam in 2700K warm white.
• Centennial Brass construction and integrated LED.
• IP67 in-ground design; Kichler lists up to 4,600 lb static load capacity.

Common Uses

Uplighting for columns, tall trees, palms, and narrow exterior details where a precise beam is needed from an in-ground position.

Technical Specifications

• Model: 16023CBR27; VLO in-ground landscape accent.
• Integrated LED; 2700K; 15-degree beam; selectable 350/550/850 lumens.
• Operating range: 9–15 VAC; IP67 rated.
• Finish: Centennial Brass; static load rating: up to 4,600 lb per Kichler.

Dimensions

7 in. W × 8 in. H × 7 in. L. Confirm installation depth and site drainage.

Compatibility & Installation Notes

Plan a compatible low-voltage transformer, cable, mounting space, and drainage. Confirm any drive-over application with Kichler’s installation instructions and a qualified installer. Adjust the output with the supplied magnetic-key system.

Frequently Asked Questions

Can the light level be adjusted? Yes. Choose 350, 550, or 850 lumens.

Is a separate lamp needed? No. The LED is integrated.

Can it go in a driveway? Kichler lists a drive-over static load rating; proper installation and site conditions matter.

Why Buy From Big Frog Supply?

Compare the 2700K color, narrow beam, and in-ground mounting requirements with your landscape plan before ordering.
