Brand: Kichler | Selectable Models: 15066AZT and 15066WHT | Big Frog Supply SKUs: 15066AZT and 15066WHT
Product Overview

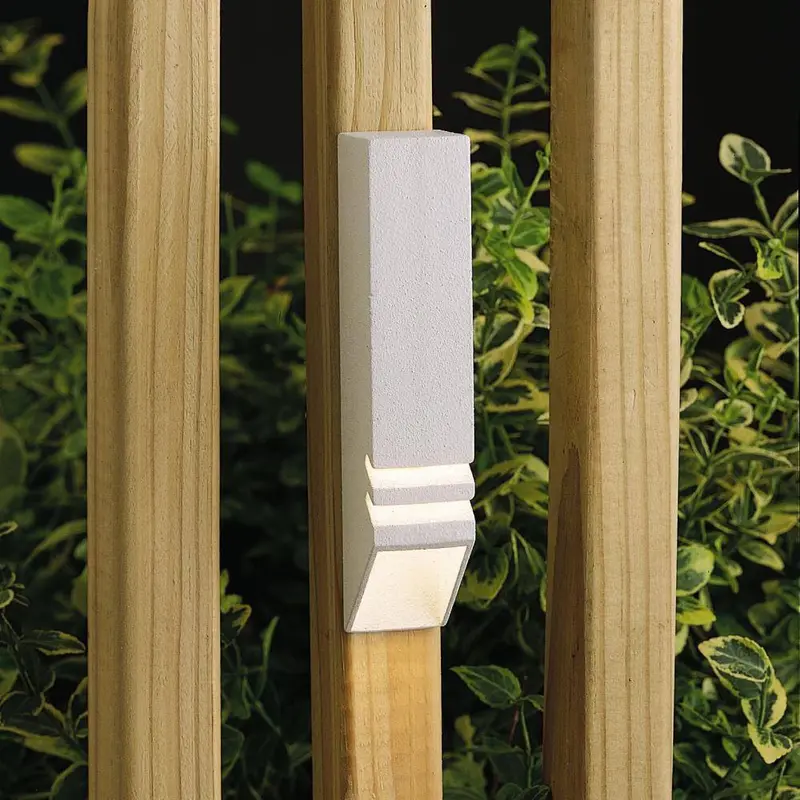

The Kichler 15066 Louvered Down Rail Deck Light is a slim 12-volt fixture designed for vertical mounting on deck posts, railings, patio structures, and stairway walls. Horizontal louvers direct the light downward toward nearby steps and walking surfaces while helping shield the lamp from direct view. At approximately 6 inches high and only 1.25 inches wide, the fixture provides useful low-level illumination without occupying much space on narrow posts or trim.
This selectable page includes 15066AZT in Textured Architectural Bronze and 15066WHT in Textured White. Both aluminum versions operate on a compatible 9- to 15-volt landscape-lighting system and use one T5 wedge-base lamp rated up to 6.5 watts. The lamp is not included, allowing the installer to choose a compatible light source and color temperature for the project. A 72-inch lead wire supports connection to approved low-voltage cable. The transformer, cable, connectors, and other system components are sold separately.
Available Variants
- 15066AZT: Textured Architectural Bronze
- 15066WHT: Textured White
Key Features
- Slim louvered deck and rail light
- Downward-directed light helps reduce glare
- Aluminum housing
- Designed for 9- to 15-volt landscape systems
- Uses one T5 wedge-base lamp
- 6.5-watt maximum lamp rating
- 72-inch lead wire
- Lamp and transformer sold separately
Common Uses
- Deck and stair railings
- Narrow posts and columns
- Patio and gazebo structures
- Outdoor transition and walking areas
Technical Specifications
- Operating voltage: 9–15 VAC
- Nominal system voltage: 12 V
- Lamp type: T5 wedge base
- Maximum lamp wattage: 6.5 W
- Lamp included: No
- Housing material: Aluminum
- Lead wire: 72 inches
Dimensions
- Height: 6 inches
- Width: 1.25 inches
- Length/depth: 1.25 inches
Installation Notes
Select the exact finish variant before ordering. Use only with a compatible low-voltage landscape transformer and wiring system. Confirm lamp fit, transformer capacity, cable length, voltage drop, mounting surface, and outdoor connection method before installation.
Frequently Asked Questions
What is the difference between the variants?
15066AZT is Textured Architectural Bronze, while 15066WHT is Textured White.
Is the T5 lamp included?
No. A compatible T5 wedge-base lamp is selected separately.
Does the fixture shine outward or downward?
The louvered face directs the light primarily downward toward the nearby surface.
Why Buy This Product from Big Frog Supply?
The selectable 15066 page makes it easier to choose the correct aluminum finish without confusing these models with the separate brass 15066CBR. Big Frog Supply clearly identifies the exact SKUs, narrow dimensions, lamp type, and low-voltage system requirements before purchase.
