K-Rain P8002704 4-Outlet Valve Bottom for 6000 Series

K-Rain P8002704 4-Outlet Valve Bottom for 6000 Series

Brand: K-Rain    SKU: P8002704

Product Overview

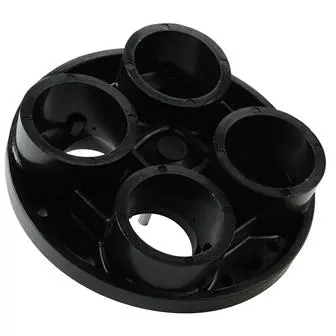

The K-Rain P8002704 is the replacement four-outlet lower valve housing for compatible K-Rain 6000 Series indexing valves. It restores the outlet-body section when the original bottom is cracked, damaged, or no longer provides sound solvent-weld connections.

The lower body has four outlet positions for a 6000 Series valve configured with a two-, three-, or four-zone cam. The number of operating zones is controlled by the installed cam, not by this housing alone. This listing does not include the die-cast upper assembly, cam, stem-and-disc assembly, body seal, vacuum breaker, or complete valve.

Key Features

• Replacement four-outlet lower housing
• For compatible K-Rain 6000 Series valves
• Supports two-, three-, or four-zone cam configurations
• High-strength valve-bottom component
• Internal parts and upper housing not included

Common Uses

• Replacing a cracked four-outlet valve bottom
• Rebuilding a serviceable 6402, 6403, or 6404 valve
• Restoring damaged solvent-weld outlet connections

Compatibility & Installation Notes

Confirm the existing valve is a four-outlet 6000 Series model. Shut down and relieve water pressure before disassembly. Inspect the body seal, upper housing, cam, stem-and-disc assembly, screws, and vacuum breaker while the valve is open. Use approved PVC solvent-weld procedures on the outlet connections and allow full cure time.

Frequently Asked Questions

The housing has four physical outlets; the separately installed cam determines whether two, three, or four zones operate.

Is it a complete indexing valve?
No. It is the replacement lower housing only.

Why Buy the K-Rain P8002704 4-Outlet Valve Bottom for 6000 Series?

Big Frog Supply organizes the four-outlet configuration, 6000 Series compatibility, and replacement-only contents so homeowners, contractors, and maintenance teams can distinguish this lower housing from valve tops and complete indexing valves before ordering.
