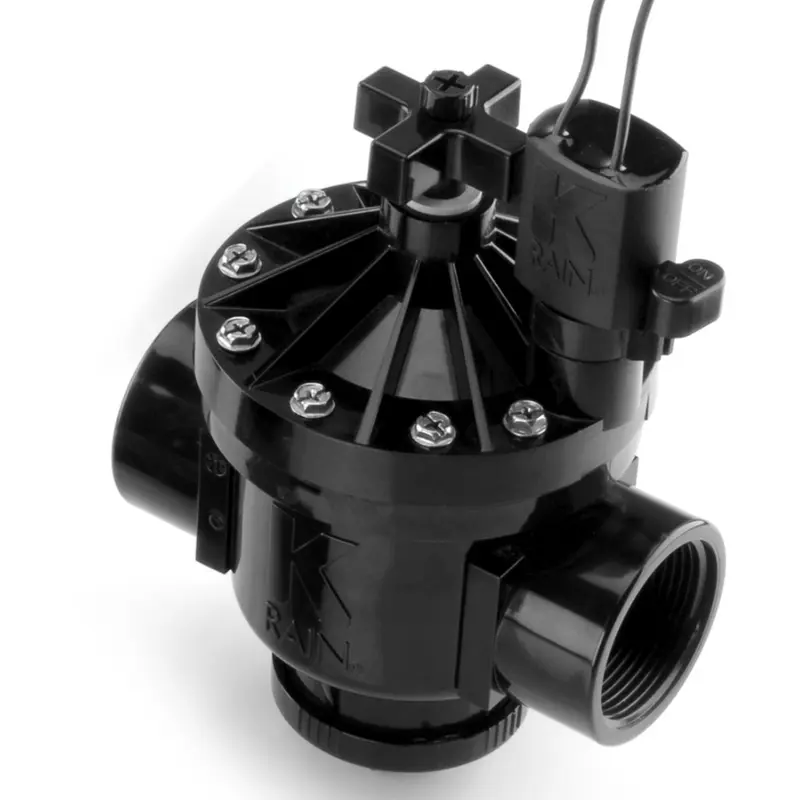

K-Rain 7115 ProSeries 150 1-1/2-Inch NPT Irrigation Valve

K-Rain 7115 ProSeries 150 1-1/2-Inch NPT Irrigation Valve

Brand: K-Rain | SKU: 7115

Product Overview

The K-Rain 7115 is a 1-1/2-inch female NPT ProSeries 150 electric irrigation valve for medium- to high-flow landscape zones. Its removable inlet cap allows the body to be installed in a conventional globe layout or converted to an approved angle-style configuration for flexible manifold and valve-box layouts.

The valve includes adjustable flow control, a heavy-duty Santoprene diaphragm, an external bleed screw with removable metering pin, and internal manual bleed through the captured-plunger solenoid. Before ordering, confirm the piping connection, design flow, available pressure, controller output, water source, filtration, valve-box clearance, and required backflow protection.

Key Features

• 1-1/2-inch female NPT inlet and outlet
• Adjustable flow control
• Convertible globe-to-angle body
• Heavy-duty Santoprene diaphragm
• External bleed screw with removable metering pin
• Captured-plunger 24 VAC solenoid

Common Uses

• Commercial and large residential irrigation systems
• Medium- and high-flow rotor zones
• Manifolds requiring globe or angle configuration
• Replacing an exact K-Rain 7115 valve

Technical Specifications

• Connection size: 1-1/2-inch female NPT
• Recommended flow range: 20–120 GPM
• Operating pressure: 20–150 PSI
• Solenoid: 24 VAC
• Configuration: Convertible globe or approved angle installation

Compatibility & Installation Notes

• Flush piping and confirm the molded flow direction before installation.
• Use the removable inlet cap only as directed for globe-to-angle conversion.
• Support connected piping to avoid loading the valve body.
• Follow K-Rain guidance for threaded adapters, sealing tape, and tightening.
• Provide service clearance for the flow-control handle and bonnet.

Frequently Asked Questions

Does the 7115 include flow control?
Yes. The valve includes adjustable flow control.

Can it be converted to an angle valve?
Yes. K-Rain provides a removable inlet cap for the approved globe-to-angle configuration.

What is the recommended flow range?
K-Rain publishes a range of 20–120 GPM for the 1-1/2-inch ProSeries 150 model.

Why Buy the K-Rain 7115 ProSeries 150 Valve?

Big Frog Supply organizes the connection size, operating range, control features, and installation configuration so homeowners, contractors, and maintenance teams can compare the 7115 with similar K-Rain valve models before ordering.
