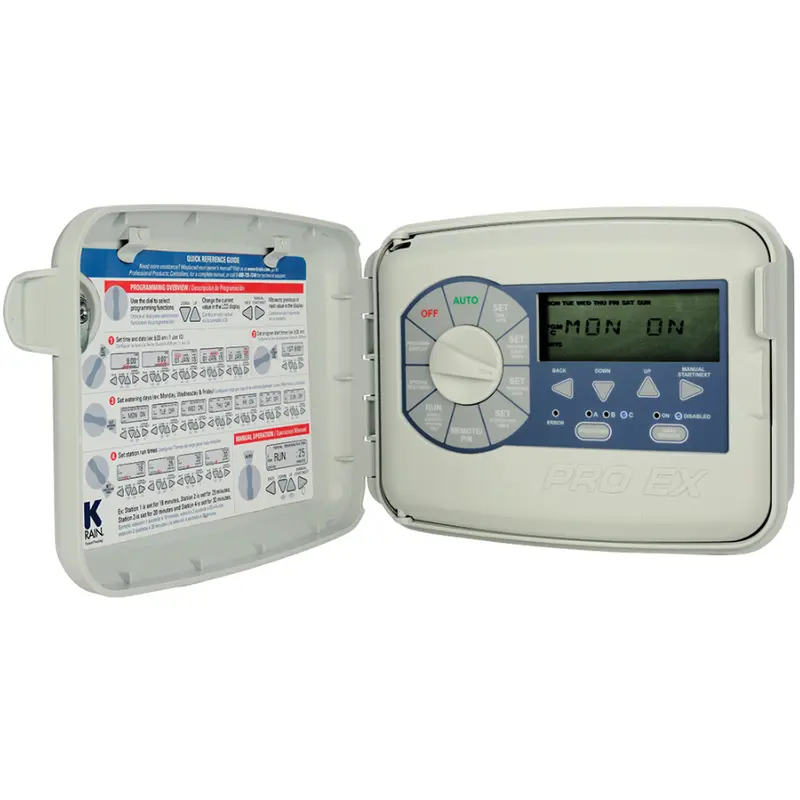

K-Rain 3202 PRO EX 2.0 4-Station Modular Irrigation Controller

K-Rain 3202 PRO EX 2.0 4-Station Modular Irrigation Controller

Brand: K-Rain | SKUs: 3202, 3202-P

Product Overview

This selectable K-Rain PRO EX 2.0 listing includes the 3202 outdoor four-station modular controller without a factory pigtail and the 3202-P version with a factory pigtail. Both versions use a 110 VAC internal transformer and begin with a four-station output module for residential, commercial, municipal, and multi-zone landscape irrigation.

The controller can expand to as many as 28 stations with compatible hot-swappable four- and fourteen-station modules. It supports three independent programs, four automatic start times per program, flexible scheduling, seasonal adjustment, sensor connections, compatible flow sensing, and master-valve or pump-start control.

This base-controller listing is Wi-Fi capable but does not include the Wi-Fi hub or RF module. Confirm the selected cord configuration, required station count, module capacity, sensors, wireless accessories, valve load, and electrical requirements before ordering.

Key Features

• Four-station outdoor modular controller
• Expandable to 28 stations with approved modules
• Three programs with four starts per program
• Seasonal adjustment and flexible watering schedules
• Rain-, rain/freeze-, flow-, master-valve-, and pump-start-ready
• Large backlit display and removable programming panel
• Wi-Fi capable with separately required communication hardware

Common Uses

• Residential and light-commercial irrigation systems
• Landscapes that may expand beyond four zones
• Flow-monitored pump or municipal-water installations
• Replacing a matching PRO EX 2.0 outdoor controller

Technical Specifications

• Base station count: 4
• Maximum station count: 28 with compatible modules
• Input: 110 VAC
• Programs: 3 independent programs
• Automatic starts: 4 per program
• Station run time: 1 second to 6 hours
• Variants: 3202 without factory pigtail; 3202-P with factory pigtail

Compatibility & Installation Notes

• Select 3202 for the no-pigtail configuration or 3202-P for the factory-pigtail version.
• Wi-Fi hub, RF module, remote, sensors, and additional station modules are separate unless specifically listed.
• Use only compatible PRO EX 2.0 four- and fourteen-station modules.
• Confirm enclosure placement, valve load, pump-start wiring, grounding, and local electrical requirements.
• Disconnect power before controller or module installation.

Frequently Asked Questions

How many stations are included?
The controller begins with four stations and can expand to as many as 28 with compatible modules.

Is Wi-Fi hardware included?
No. This is the base controller. Wi-Fi operation requires the appropriate hub and RF hardware or a complete Wi-Fi kit.

What is the difference between 3202 and 3202-P?
The 3202-P includes a factory pigtail; the 3202 does not.

Why Buy the K-Rain 3202 PRO EX 2.0 Controller?

Big Frog Supply organizes the cord options, station capacity, control features, and separately required Wi-Fi hardware so homeowners, contractors, and maintenance teams can compare configurations and avoid purchasing duplicate or incompatible components.
