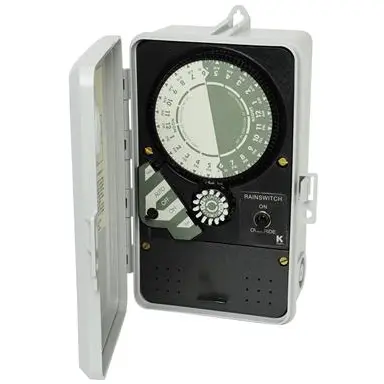

K-Rain 2520 2 HP 220V Irrigation Timer with Rain Switch

K-Rain 2520 2 HP 220V Irrigation Timer with Rain Switch

Brand: K-Rain | SKU: 2520

Product Overview

The K-Rain 2520 is a mechanical single-load controller for one compatible 220V irrigation pump. It combines a repeating watering schedule with terminals for an optional 24V rain switch, allowing pump-fed irrigation to pause after sufficient rainfall without changing the programmed schedule.

The main input and switched output are both 220 VAC; the 24V reference applies only to the compatible rain-switch circuit. Before ordering, confirm the supply voltage, motor voltage and horsepower, switching requirements, sensor compatibility, wiring method, and required electrical protection. This is not a conventional 24 VAC multi-zone valve controller.

Key Features

• 220 VAC input and switched output
• Compatible 24V rain-switch connection
• Face-mounted rain-switch override
• 24-hour mechanical dial with multiple starts
• Repeating 14-day retained-pin schedule
• Double-pole, single-throw switching

Common Uses

• Controlling a single 220V irrigation pump
• Pump-fed indexing-valve installations
• Mechanical scheduling with weather interruption
• Replacing an exact K-Rain 2520 controller

Technical Specifications

• Model: 2520
• Stations: 1
• Input Voltage: 220 VAC
• Switched Output: 220 VAC
• Maximum Compatible Motor Load: 2 HP
• Switching: Double-pole, single-throw
• Schedule: Repeating 14-day retained-pin cycle
• Rain-Switch Circuit: Compatible 24V sensor sold separately

Compatibility & Installation Notes

Confirm the exact motor nameplate, supply voltage, load, wiring method, and local code requirements. The compatible rain switch is not included, and the main output remains 220 VAC. Use required disconnects, grounding, overload devices, and circuit protection. Line-voltage work should be performed by a qualified professional following current K-Rain instructions.

Frequently Asked Questions

Does the K-Rain 2520 output 24V to the pump?
No. It switches a 220 VAC load; 24V refers to the compatible rain-switch circuit.

Is a rain sensor included?
No. The controller is sensor ready, but the compatible sensor is sold separately.

Can it operate standard 24 VAC irrigation valves directly?
No. It is a single-load line-voltage controller.

What size motor can it control?
K-Rain rates it for an approved 220V motor load up to 2 HP.

Why Buy the K-Rain 2520 Irrigation Timer?

Big Frog Supply organizes the pump voltage, motor rating, rain-switch circuit, schedule, and installation requirements so homeowners, contractors, and maintenance teams can compare SKU 2520 with visually similar controllers before ordering.
