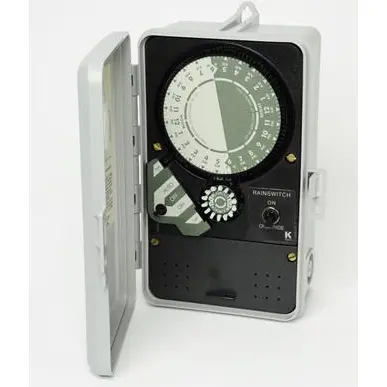

K-Rain 2514 110V-to-24V Irrigation Timer with Rain Switch

K-Rain 2514 110V-to-24V Irrigation Timer with Rain-Switch Support

Brand: K-Rain | SKU: 2514

Product Overview

The K-Rain 2514 is a mechanical single-station controller for one compatible 24 VAC irrigation load. It accepts 110 VAC input and uses a built-in transformer to provide 24 VAC, 20 VA output. Rain-switch terminals allow a compatible weather sensor to interrupt scheduled watering without removing the programmed start times.

The controller combines a 24-hour mechanical dial, multiple start opportunities, and a repeating 14-day retained-pin schedule. Before ordering, confirm the connected load, inrush demand, sensor contact arrangement, supply voltage, and installation requirements. The rain switch is sold separately, and the 2514 does not directly switch a 110V or 220V pump motor.

Key Features

• Mechanical single-station irrigation control
• Built-in 24 VAC transformer
• Rain-switch terminals and controller-face override
• 24-hour dial with multiple start opportunities
• Repeating 14-day retained-pin schedule

Common Uses

• Operating one compatible 24 VAC irrigation valve
• Adding rain-sensor interruption to a single-zone system
• Controlling a compatible low-voltage pump-start relay
• Replacing an exact K-Rain 2514 controller

Technical Specifications

• Input: 110 VAC
• Output: 24 VAC, 20 VA
• Stations: 1
• Schedule: Repeating 14-day retained-pin program
• Sensor support: Compatible rain switch; sensor sold separately

Compatibility & Installation Notes

• Confirm the connected 24 VAC load, including inrush demand, remains within the 20 VA transformer rating.
• Use the approved rain-switch contact arrangement.
• A line-voltage pump requires a properly rated separate relay or starter.
• Disconnect power and follow current K-Rain instructions and applicable electrical codes.
• Line-voltage work should be completed by a qualified professional.

Frequently Asked Questions

Does the K-Rain 2514 include a rain sensor?
No. It includes compatible rain-switch terminals and an override; the sensor is sold separately.

What is the controller output?
The verified output is 24 VAC at 20 VA.

Can it power a pump directly?
Not a line-voltage pump motor. Pump control requires a compatible, properly rated relay or starter.

Why Buy the K-Rain 2514 Irrigation Timer?

Big Frog Supply separates the input, low-voltage output, rain-switch function, and pump-control limitations so homeowners, contractors, and maintenance teams can compare the 2514 with K-Rain’s line-voltage timer models before ordering.
