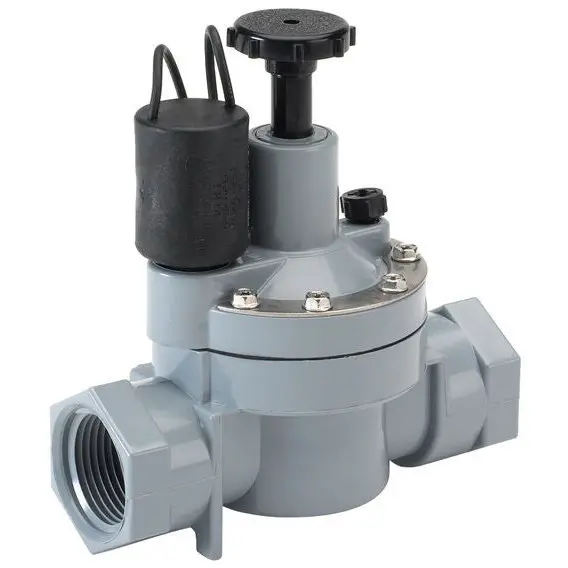

Irritrol – 205 Series Valves

Brand: Irritrol    SKUs: 205SF, 205T, 205TF

Product Overview

The Irritrol 205 Series is a group of 1-inch residential irrigation valves offered here in slip and female NPT configurations, with or without flow control. The series is designed for potable-water and dirty-water applications where a compact, serviceable valve is needed for sprinkler, spray, rotor, or drip zones. This listing includes the 205SF slip valve with flow control, the 205T threaded valve without flow control, and the 205TF threaded valve with flow control.

All three models use heavy-duty, corrosion- and UV-resistant PVC construction with stainless-steel components and a nylon-reinforced Buna-N diaphragm. The high-flow, low-friction-loss body is rated for approximately 0.25 to 30 GPM and 10 to 150 PSI. A manual bleed allows the valve to be opened for testing or service without activating the irrigation controller. Models ending in “F” include a flow-control stem for zone balancing and manual shutoff; the 205T does not include that feature.

Each valve is supplied with a standard 24 VAC solenoid for use with compatible irrigation controllers. Because connection style and flow-control configuration cannot be changed after installation without replacing components, verify the exact variant before ordering.

Key Features

• 1-inch residential irrigation valve
• Slip or female NPT connection options
• Flow-control and non-flow-control configurations
• Approximate 0.25 to 30 GPM flow range
• Recommended pressure range of 10 to 150 PSI
• Nylon-reinforced Buna-N diaphragm
• Manual bleed for testing and service
• Standard 24 VAC solenoid

Variant Selection

• 205SF: 1-inch slip connections with flow control
• 205T: 1-inch female NPT connections without flow control
• 205TF: 1-inch female NPT connections with flow control

Common Uses

• Residential lawn and landscape irrigation zones
• Spray-head, rotor, and drip-zone valve control
• Replacing compatible Richdel, Hardie, or Irritrol valve installations
• Systems needing a compact 1-inch valve

Compatibility and Installation Notes

Match the connection type to the existing pipe before ordering. Slip models require compatible solvent-weld PVC installation, while threaded models require matching male NPT fittings. Install with the flow arrow aligned to water movement, flush the line before final operation, and provide valve-box access for service. Use with a compatible 24 VAC controller.

Frequently Asked Questions

Which variants include flow control?

The 205SF and 205TF include flow control. The 205T does not.

Are all variants 1-inch valves?

Yes. The difference is the connection style and whether flow control is included.

Can the valve be operated manually?

Yes. The manual bleed can be used for testing and service according to the installation instructions.

Why Buy This Irritrol 205 Valve from Big Frog Supply?

Big Frog Supply carries the most commonly requested 205 Series connection and flow-control combinations on one page, helping you compare the exact replacement before ordering. Compatible diaphragms, cover assemblies, solenoids, and irrigation controls are also available for ongoing maintenance.
