Brand: Intermatic | Manufacturer Part Number: WP1010MXD | Big Frog Supply SKU: WP1010MXD
Product Overview

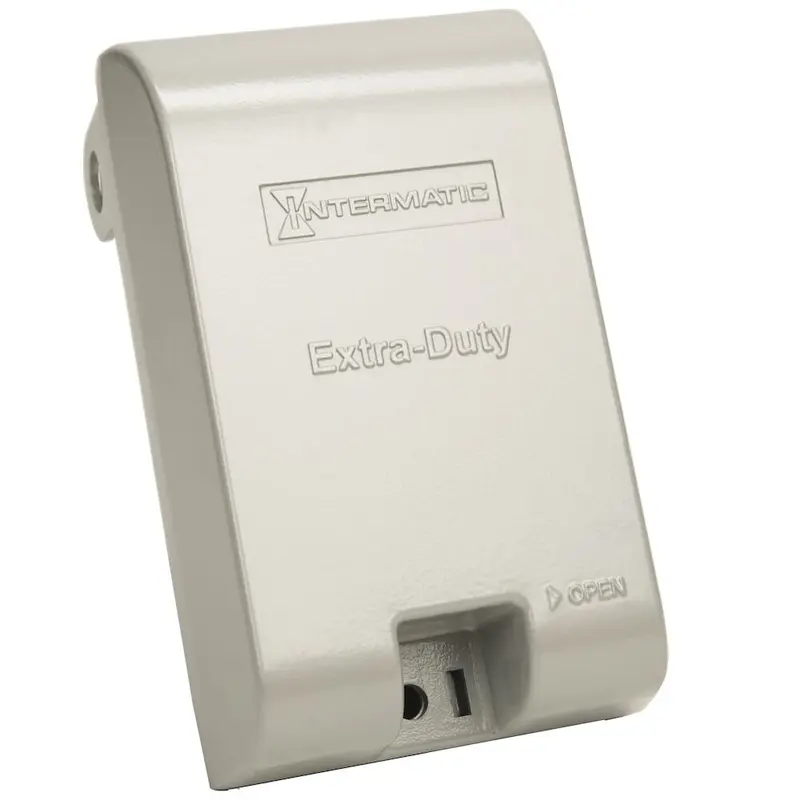

The Intermatic WP1010MXD is a gray, single-gang extra-duty in-use weatherproof cover with a vertical hinge. Its die-cast aluminum cover and mounting base protect a compatible outdoor receptacle while a cord remains connected. The 3.125-inch depth provides working space around common cord-and-plug connections, while the vertical orientation is designed for installations where the cover opens upward or downward according to the approved mounting arrangement.
Key Features
- Single-gang vertical in-use cover
- Extra-duty die-cast aluminum construction
- Outdoor Type 3R metal enclosure classification
- UV-stabilized polycarbonate WP17 insert included
- 3 mm neoprene gasket
- Reinforced hinge pin and lockable hasp
Common Uses
- Outdoor receptacle protection
- Engine-block heater connections
- Walk-in refrigeration and freezer applications
- Wet-location cord-and-plug installations
Technical Specifications
- Gang count: Single
- Hinge direction: Vertical
- Color: Gray
- Material: Die-cast aluminum
- Enclosure type: Outdoor Type 3R metal
- Extra-duty rated: Yes
- Maximum accepted cord: One 12 AWG cord
- Included insert: WP17
- Maximum hasp shank diameter: 1/4 inch
Dimensions
- Depth: 3.125 inches
- Height: 6.375 inches
- Width: 3.8 inches
Installation Notes
Use the cover only with a compatible electrical box and receptacle arrangement. Installation should be completed with power disconnected using the included gasket, approved fittings, and manufacturer instructions. Proper mounting orientation and sealing are required to maintain weather-resistant performance.
Frequently Asked Questions
Is this the vertical model?
Yes. The WP1010MXD is the vertical-hinge single-gang cover.
How does it differ from WP1010HMXD?
Both are extra-duty single-gang metal covers, but the WP1010MXD is vertical while the HMXD model is horizontal.
Why Buy This Product from Big Frog Supply?
The WP1010MXD is designed for vertical single-gang installations that require an extra-duty metal in-use cover. Big Frog Supply calls out the hinge direction, dimensions, and WP17 insert so customers can distinguish it from the horizontal version.
