Brand: Intermatic | Manufacturer Part Number: R8806M101C | Big Frog Supply SKU: R8806M101C
Product Overview

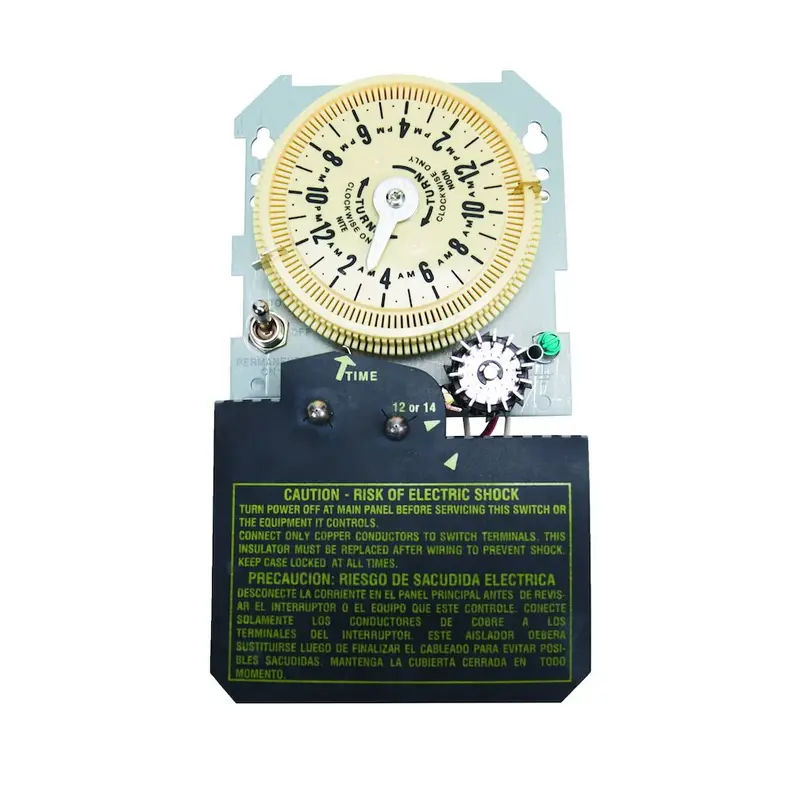

The Intermatic R8806M101C is a mechanism-only 24-hour mechanical irrigation time switch for compatible 240-volt control installations. It is designed for applications that need several watering periods each day along with the ability to omit selected days from the schedule. The 14-day skipper wheel supports alternate-day and selected-day operation, while the mechanical dial provides watering intervals from 12 minutes to 20 hours and 45 minutes.
An ON/OFF/AUTO control allows the operator to stop watering during wet conditions or extend operation during unusually dry periods without disturbing the tripper settings on the dial. This listing is for the timer mechanism only. It does not include a weather-resistant enclosure, so the existing or separately supplied cabinet must be confirmed for the mechanism, wiring, voltage, and installation environment.
Key Features
- Mechanism-only analog irrigation timer
- 240 VAC, 60 Hz operation
- DPST switching
- Up to 44 ON/OFF operations per day
- 14-day skipper for selected-day and alternate-day scheduling
- Watering intervals from 12 minutes to 20 hours, 45 minutes
- ON/OFF/AUTO control
- Includes 12 trippers
Common Uses
- Landscape irrigation systems
- Greenhouse misting control
- Agricultural watering and feeder applications
- Replacement of a matching Intermatic timer mechanism
Technical Specifications
- Input voltage: 240 VAC, 60 Hz
- Mechanism type: Analog/mechanical
- Switch type: DPST
- Maximum ON/OFF operations: 44 per day
- Minimum ON/OFF time: 12 minutes
- Maximum ON/OFF time: 20 hours, 45 minutes
- Trippers included: 12
- Enclosure: Not included
Compatibility and Installation Notes
Confirm that the existing enclosure, mounting arrangement, wiring, and connected load are suitable for the R8806M101C. Do not rely on voltage alone when selecting a replacement mechanism. Installation involves hazardous electrical voltage and should be completed by a qualified person with all power disconnected.
Frequently Asked Questions
Does the R8806M101C include an enclosure?
No. This listing is for the timer mechanism only.
Can it skip selected watering days?
Yes. The 14-day skipper supports selected-day and alternate-day schedules.
What is the shortest watering interval?
The minimum listed interval is 12 minutes.
Why Buy This Product from Big Frog Supply?
The R8806M101C is intended for customers who need the exact 240-volt irrigation timer mechanism rather than a complete enclosed controller. Big Frog Supply clearly identifies the mechanism-only configuration, scheduling range, DPST switching, and included trippers without carrying over enclosure claims that do not belong to this SKU.
