Ignition Kit Fits FARMALL Replaces 251539R91

One New Aftermarket Ignition Kit

Tech Info:

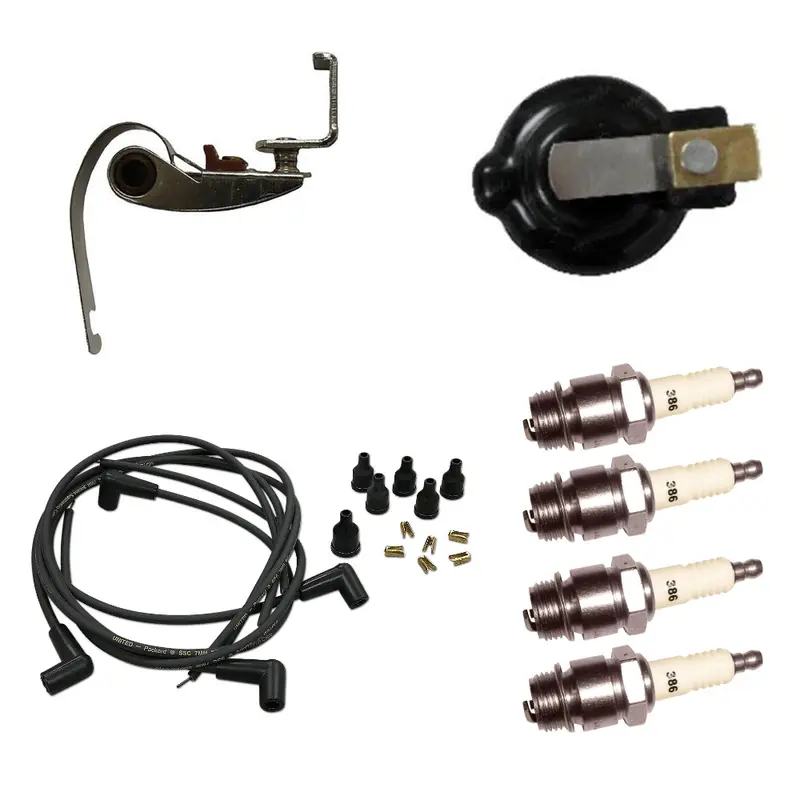

 -Kit Contains:
 -(1) Spark Plug Wire Set
 -ALL 4-CYL (1939-1964)
 -Wire Dimensions:
 -Wire Diameter: 1/4”
 -With Cap: 5/8”
 -Lenght: 30”
 -Cap Dimensions:
 -Length: 1 3/8”
 -Diameter: 3/4
 -Metal Pieces:
 -Length: 3/4”
 -Width: 1/4”
 -Height: 1/2”
 -Replaces Part Number: CPN12259
 -
 -(4) Spark Plug
 -Standard Info
 -Thread Size: 18mm
 -7/8″ Hex Shoulder
 -Hex Size: 13/16″ (20.6mm)
 -Reach: 12mm (.472″)
 -Seat Type: Gasket
 -Gap: .028″ (0.7mm)
 -Heat Range: 2
 -Terminal Type: Removable Nut
 -Resistor: No
 -Thread Pitch: 1.5mm
 -Center Electrode
 -Type: Standard
 -Material: Nickel
 -Size: 2.5mm
 -Projection: Non-Projected
 -Ground Electrode
 -Type: Standard
 -Material: Nickel
 -Replaces Part Number(s): G44840, 4012405C
 -
 -(1) Rotor
 -Replaces Part Number: 353896R91
 -
 -(1) Ignition Points Set
 -0.020″ Point Gap
 -Replaces Part Number: 353172R1
 -
 -(1) Ignition Condenser
 -Fits 1951-62 Distributors.
 -Also Fits J4 Magneto
 -For Serial Numbers 81411 & Up
 -Replaces Part Number(s): 251539R91, 353903R91, 353903R92, 353905R1, 354136R92

Made to Fits FARMALL:
 Tractor Models: 400
 Replaces Part Number(s): G44840, 4012405C, 353896R91, 353172R1, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, CPN12259
