Product Overview

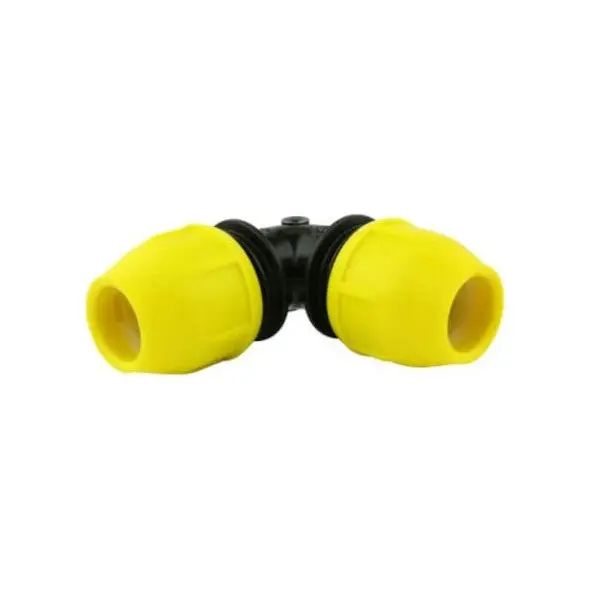

The HOME-FLEX 18-406-020 is a 2-inch IPS 90-degree elbow for changing direction in a compatible underground yellow polyethylene fuel-gas piping system. Its two equal-size mechanical connections allow an approved 2-inch IPS pipe run to turn through a right angle without introducing a threaded metal connection at the bend. The fitting is supplied ready for system assembly with an internal stiffener for each connected pipe end.
This elbow is part of the HOME-FLEX Underground system and is intended only for direct-burial applications using approved IPS yellow MDPE or polyethylene gas pipe carrying natural gas or propane. It is not compatible with HOME-FLEX CSST, and the two product systems must not be mixed. HOME-FLEX lists this mechanical fitting family under ASTM F1924 Category 1. A 2-inch system component is generally used only where the engineered flow requirement and local approval support that size. Include the elbow’s fitting adjustment value in the developed-length calculation and verify pipe SDR, gas pressure, connected demand, routing, trench requirements, tracer wire, testing, and inspection from current project documents. Confirm the marked 2-inch IPS pipe size and authority approval before ordering.
Key Features:
- 2-inch IPS equal 90-degree elbow
- Changes direction in compatible underground poly gas piping
- Mechanical fitting supplied with two internal stiffeners
- For approved IPS yellow polyethylene or MDPE gas pipe
- For natural-gas or propane systems when approved for the project
- ASTM F1924 Category 1 fitting family
Common Uses:
- Routing a high-capacity underground gas run around site features
- Changing direction between straight 2-inch IPS poly-pipe sections
- Creating a right-angle turn in a professionally engineered system
Technical Specifications:
- Manufacturer part number: 18-406-020
- Product type: Underground 90-degree elbow
- Connections: 2-inch IPS x 2-inch IPS
- Connection method: Mechanical compression-style fitting
- Pipe compatibility: Approved IPS yellow polyethylene or MDPE gas pipe
- Fuel compatibility: Natural gas and propane
- Installation location: Underground direct-burial system
- Standard: ASTM F1924 Category 1
- Included components: Elbow body and two internal pipe stiffeners
Important Installation Note:
Fuel-gas piping must be designed and installed by a qualified person as required by the governing authority. Do not use this fitting above ground, inside or beneath a building, encased in concrete, with CSST, or with pipe that does not match the marked size. Test and inspect the system according to current HOME-FLEX instructions before burial.
FAQ
What pipe size fits this elbow?
Both connections accept compatible 2-inch IPS yellow poly gas pipe.
Are the internal stiffeners included?
Yes. Two stiffeners are supplied.
Is this a general-purpose water-pipe elbow?
No. It is a component of the HOME-FLEX Underground fuel-gas piping system.
Does the fitting determine the gas capacity?
No. Capacity must be calculated from the complete system design and current sizing tables.
Why Buy the HOME-FLEX 18-406-020 From Big Frog Supply?
Big Frog Supply identifies the exact 2-inch IPS size, part number, underground application, compatible system, included stiffeners, applicable standard, and current documents so professional buyers can verify this large fitting before ordering.
