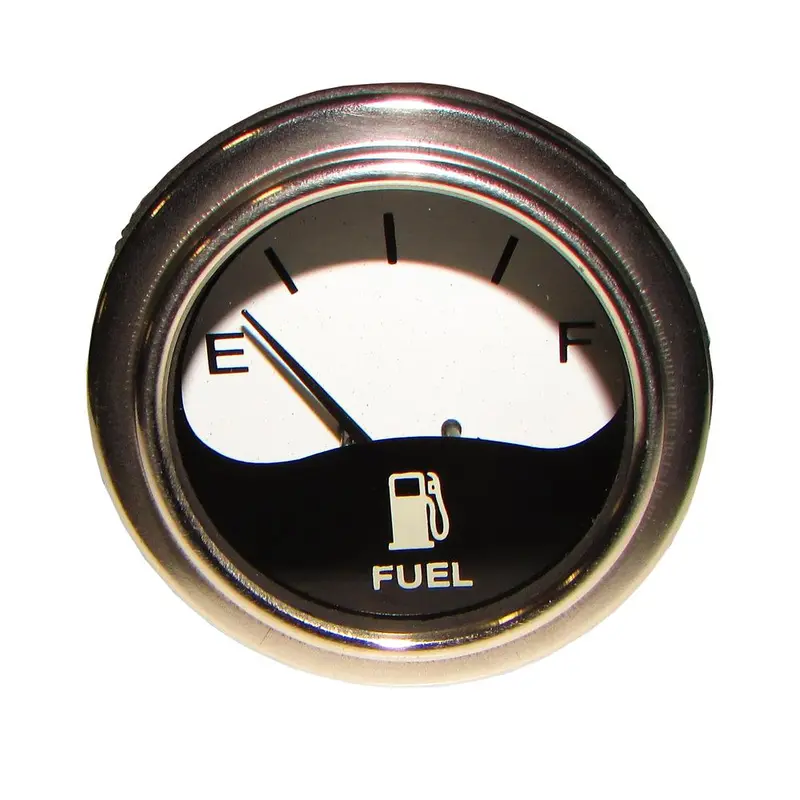

One New Aftermarket Replacement Fuel Gauge (White Face) Fits International Harvester (IH) / Fits Case IH Tractors
This white-face fuel gauge is a direct replacement Fits International Harvester and Fits Case IH tractors. It mounts to the instrument panel dash and works with the tractor’s original fuel sending unit. The gauge operates on a 12-volt negative ground system and requires a proper chassis ground to function correctly — in some cases an additional ground wire from the clamp terminal to an existing bolt may be needed.
Specifications
- Voltage: 12 Volt, Negative Ground
- Resistance Range: 32-244 Ohms
- Number of Terminals: 2
- Terminal Type: Screw
- Mounting: Bolt-on
- Gauge Diameter: 2 in / 52 mm
- Face Color: White
Compatible Models
Fits International Harvester (IH) / Fits Case IH — 60 Series (with Stewart Warner sending unit): 460, 560, 660
Fits International Harvester (IH) / Fits Case IH — 66 Series: 766, 966, 1066, 1466, 1566, 4366
Fits International Harvester (IH) / Fits Case IH — 68 Series: 1468, 1568, 4568
Fits International Harvester (IH) / Fits Case IH — Large Frame: 4386, 4586
Fits International Harvester (IH) / Fits Case IH — Hydro Series: Hydro 100
Replaces Part Number(s):
533992R1, H142794, 378426R91, A24079
New aftermarket replacement part – not remanufactured, not used.
