Product Overview

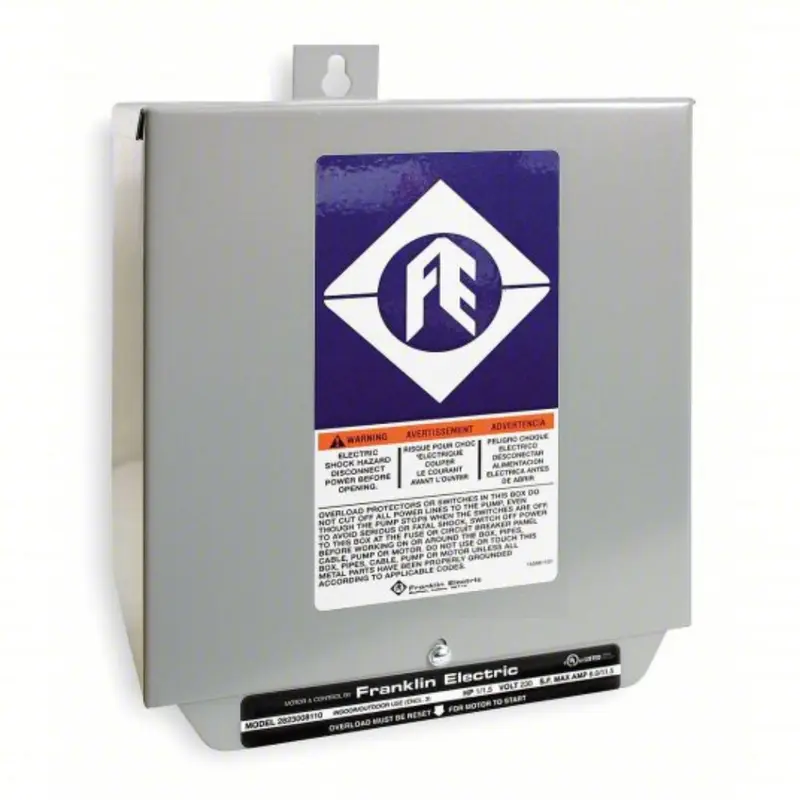

The Franklin Electric 2823028310 is a deluxe control box for compatible 3 HP, 230V, 60 Hz, single-phase 3-wire submersible motors. Existing product data lists heavy-duty start and run components, a Type 3R enclosure, and a deluxe control box type for higher-demand pump applications.
Key Features:
- Deluxe control box for compatible Franklin submersible motors
- Designed for 3 HP, 230V, 60 Hz single-phase 3-wire applications
- Heavy-duty start and run components listed in existing product data
- Type 3R enclosure rating listed in existing product data
- Designed for deep-well, irrigation, and high-demand water systems
- Use with properly matched Franklin 3-wire motor systems
Technical Specifications:
- Model / SKU: 2823028310
- Rating: 3 HP / 2.2 kW
- Input Voltage: 230 VAC
- Frequency: 60 Hz
- Phase: Single-phase
- Control Box Type: Deluxe
- Nominal Amps: 14.5 A
- Maximum Amps: 17 A
- Enclosure Rating: Type 3R
- Operating Temperature: 14°F to 122°F
- Storage Temperature: -13°F to 144°F
Important Compatibility Note:
Match control box horsepower, voltage, phase, and motor wiring before installation.
