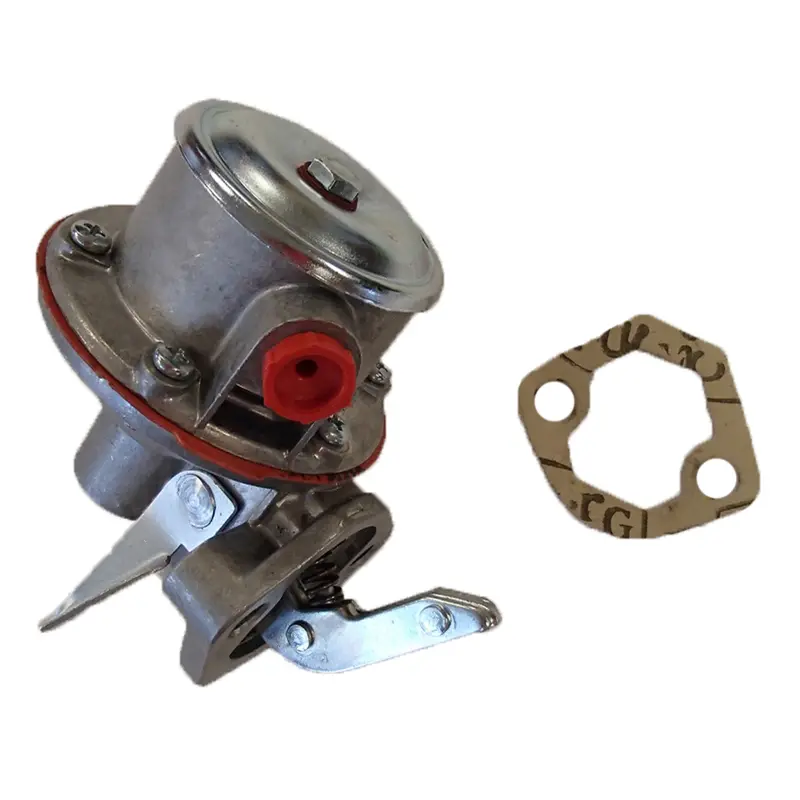

One New Aftermarket Replacement Fuel Lift Transfer Pump with Gasket for John Deere (JD) Tractors, Combines, Excavators, and Industrial Equipment
This mechanical fuel lift transfer pump draws fuel from the tank and delivers it to the injection pump or carburetor on John Deere (JD) gas and diesel engines. The pump mounts via a 2-bolt flange and includes the mounting gasket. Port orientation: inlet at 1 o’clock, outlet at 7 o’clock with the cam lever facing you. Fits a wide range of John Deere agricultural, construction, and industrial equipment. Note: some applications may require different port fittings.
Specifications
- Port Size: 1/8″ – 27 NPT
- Port Orientation: Inlet at 1 o’clock, outlet at 7 o’clock (cam lever facing operator)
- Mount: 2-bolt flange
- Gasket: Included
- Compatible Fuels: Gasoline and diesel (unless otherwise noted)
Compatible Models
John Deere Tractors: 24, 34, 44, 45, 54, 55, 65, 70, 180, 202, 210C, 300, 300A, 300B, 300D, 301, 301A, 302, 302A, 350, 350A, 350B, 350C, 350D, 355D, 380, 400, 400G, 401, 401A, 401B, 401C, 401D, 410, 410B, 410C, 410D, 415B, 415C, 440, 440A, 440B, 440C, 440D, 444, 444C, 444CH, 444D, 444E, 444G, 450, 450A, 450B, 450C, 450D, 450E, 450G, 455D, 455E, 455G, 480, 480A, 480B, 480C, 482C, 490, 490D, 490E, 493D, 495D, 499, 500, 510B, 510C, 510D, 515B, 540, 540A, 540B, 540D, 540E, 540G, 544, 544A, 544B, 544C, 544D, 544E, 544EH, 544G, 548D, 548E, 548G, 550, 550A, 550B, 550G, 555, 555A, 555B, 555G, 570, 570A, 570B, 590D, 595, 595D, 600, 610B, 610C, 624E, 624EH, 624G, 640, 640D, 640E, 640G, 643, 643D, 644A, 644E, 648D, 648E, 648G, 650G, 653, 653E, 655, 655A, 655B, 670, 670A, 670B, 672, 672A, 672B, 690, 690A, 690D, 690E, 690ELC, 693D, 700A, 710B, 710C, 710D, 740E, 740G, 748E, 748G, 750, 750B, 750C, 755, 755A, 755B, 755BMIL, 760, 760A, 790E, 790ELC, 820, 820 3-cylinder, 830, 830 3-cylinder, 840, 850C, 940, 1010, 1020, 1030, 1040, 1130, 1140, 1350, 1520, 1530, 1550, 1630, 1640, 1750, 1750V, 1830, 1840, 1850, 1950, 2020, 2030, 2040, 2040S, 2130, 2140, 2150, 2155, 2240, 2250, 2255, 2270, 2280, 2320, 2350, 2355, 2355N, 2360, 2420, 2440, 2450, 2510, 2520, 2535, 2550, 2555, 2630, 2640, 2650, 2650N, 2750, 2755, 2840, 2850, 2855, 2855N, 2940, 2950, 2955, 3010, 3020, 3030, 3040, 3050, 3140, 3150, 3155, 3255, 3300, 3350, 3420, 3430, 3640, 3830, 4000, 4010, 4020, 4030, 4045, 4050, 4250, 4400, 4420, 4425, 4520, 5010, 5020, 6000, 6000 HI-CYCLE, 6030, 6059, 6068, 6100, 6329, 6359T, 6414, 6500, 6600, 6602, 7200, 7400, 7440, 7445, 7450, 7600, 7700, 7800, 9400, 9900, 9910, 9920, 9930
John Deere Crawlers / Dozers: 350C, 380, 450C, 450D, 450E, 450G, 550, 550A, 550B, 750, 750B, 750C, 850C
John Deere Excavators: 70D, 180, 190E, 290D, 490, 490D, 490E, 495D, 590D, 595, 690, 690A, 690D, 690ELC, 750, 790ELC
John Deere Backhoe Loaders: 210C, 310, 310A, 310B, 310C, 310D, 315C, 315D, 401C, 410, 410B, 410C, 410D, 415B, 500, 510B, 510C, 510D, 610B, 610C, 710B, 710C, 710D
John Deere Skidders / Feller Bunchers: 340D, 440C, 440D, 448D, 540B, 540D, 540E, 540G, 548D, 548E, 548G, 640, 640D, 640E, 640G, 643, 643D, 648D, 648E, 648G, 653, 653E, 693D, 740E, 740G, 748E, 748G
John Deere Combines: 3300, 4400, 4420, 4425, 6600, 6602, 7700, 9400, 9900, 9910, 9920, 9930
John Deere Forage Harvesters: 699, 7200, 7400, 7440, 7445, 7450, 7800
John Deere Graders: 570, 570A, 570B, 670, 670A, 670B, 672, 672A, 672B
John Deere Forklifts: 380, 480, 480A, 480B, 480C, 482C
John Deere Sprayers / Swathers: 6000, 6100, 6500
Replaces Part Number(s):
RE27667, RE527115, RE37482, DD13483, DD14292, AR52159, RE42211, RE42211B, RE422111, DD14195, DZ126573, AR64120, AR47304, R27285, AR28330, AR31176, AR49770, AR52158, AR40259, AR55730, AR34415, RE43274, AR40258
New aftermarket replacement part – not remanufactured, not used.
