Fits Briggs and Stratton Replacement Carburetor 799868, 498170, 498254, 497347

One New Aftermarket Replacement Carburetor Fits Briggs & Fits Stratton (Fits Briggs and Stratton) Walk-Behind Mower Engines

This aftermarket replacement carburetor Fits Briggs & Fits Stratton vertical shaft L-Head engines in the 12 cu. in. displacement class, covering most 4-7 HP primer-type (no choke) engine configurations. It is a direct replacement for OEM carburetor 799868 and its predecessors, and is used on select Fits Toro and other walk-behind mowers powered by Fits Briggs & Fits Stratton 625 and 675 Series engines. Comes complete with gasket and O-ring seal for a complete installation.

Important: Not compatible with fuel containing greater than 10% ethanol (E10 max). Fits vertical shaft engines with primer button only — does not fit choke-equipped carburetors.

Specifications

• Engine type: Vertical shaft L-Head, 12 cu. in. displacement
• Horsepower range: 4-7 HP
• Primer style: Primer button (no choke)

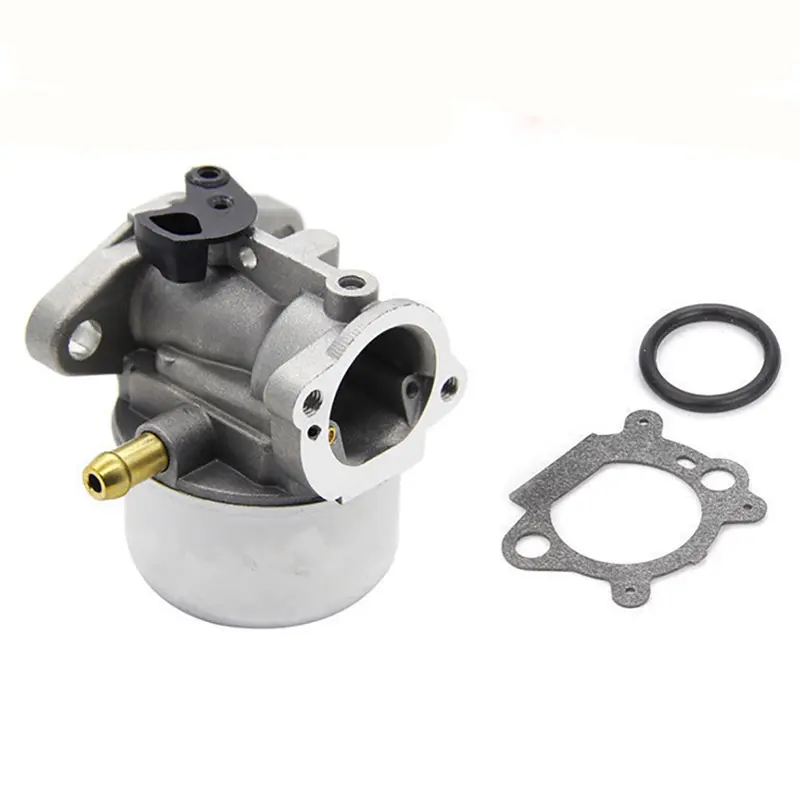

• Includes: Carburetor, gasket, and O-ring seal
• Max ethanol blend: E10 (10%)

Compatible Models

Fits Toro Walk-Behind Mowers: 20011, 20027, 20038, 20039, 20783, 20784, 20794, 20796

Fits Briggs & Fits Stratton Engine Series (120XXX / 121XXX / 122XXX / 12EXXX / 12TXXX primer-type): 110602, 110607 (11C602), 111607, 111682, 111687, 120602, 120607, 120609, 120682, 121602, 11A602, 11A682, 11A687, 206634

Also Fits Craftsman, Murray, and Snapper walk-behind mowers powered by compatible Fits Briggs & Fits Stratton 625/675 Series 4-7 HP vertical shaft engines with primer-type carburetor.

Replaces Part Number(s):

497586, 498170, 498254, 498255, 799868

Aftermarket Interchange Numbers

497347, 497314, 498966, 694202, 693909, 692648, 499617, 799872, 790821, 698444, 497410

New aftermarket replacement part – not remanufactured, not used.
