Product Overview

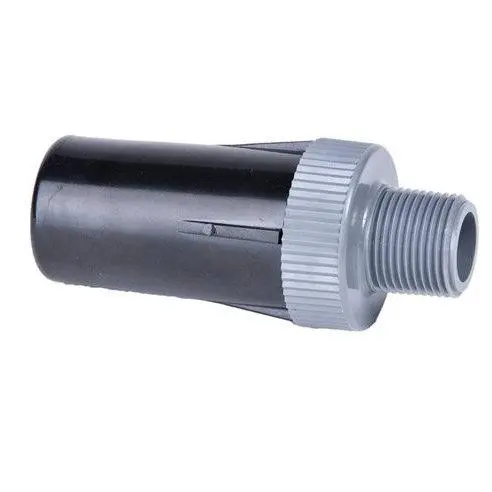

The DIG 18-025 preset regulator reduces inlet pressure to approximately 25 PSI for compatible drip-irrigation and micro-sprinkler systems. It has a 3/4 in. female pipe-thread inlet and a 3/4 in. male pipe-thread outlet.
Key Features:
- Preset 25 PSI downstream pressure
- 3/4 in. FNPT inlet
- 3/4 in. MNPT outlet
- Compact chemical-resistant ABS body
- EPDM diaphragm and stainless steel spring
- Designed for installation downstream of the system valve
Common Uses:
- Drip-irrigation zones requiring 25 PSI
- Compatible micro-sprinkler systems
- Pipe-thread irrigation assemblies
Technical Specifications:
- Preset Pressure: 25 PSI
- Flow Range: 0.5-12 GPM
- Maximum Recommended Flow: 12 GPM
- Maximum Working Pressure: 120 PSI
- Body: Chemical-resistant ABS plastic
- Diaphragm: EPDM
- Spring: Stainless steel
Dimensions:
- Inlet: 3/4 in. FNPT
- Outlet: 3/4 in. MNPT
- Overall Length: 4.025 in.
- Outside Diameter: 1.845 in.
Installation and Use Notes:
Install downstream of the control valve in the direction of flow. The regulator requires water flow to regulate pressure; verify that system demand remains within its rated flow range.
FAQ:
Can the pressure setting be adjusted?
No. This model is preset to 25 PSI.
What thread connections are included?
It has a 3/4 in. FNPT inlet and a 3/4 in. MNPT outlet.
