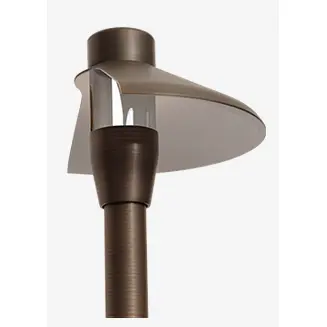

Dauer 489905 Omni Half-Cut Path Light Fixture, No Lamp

Product Overview

The Dauer 489905 Omni is a half-cut cast brass path light fixture designed for placement next to a wall or other vertical surface. Its compact hat and clear polycarbonate lens direct light from a compatible 12V bi-pin lamp while maintaining a low-profile landscape lighting appearance.

The half-cut design reduces the clearance needed beside walls, retaining edges, and foundations, but the stem and lamp must be selected separately for the completed installation. Confirm the compatible threaded stem, desired mounting height, lamp base, voltage, wattage, brightness, and color temperature before ordering. The selected lamp load must be included in transformer sizing and voltage-drop calculations. Plan fixture spacing, wall clearance, ground stability, cable routing, and direct-burial connections so the light pattern reaches the walkway or bed without creating excessive glare.

Key Features:

• Half-cut design for wall-adjacent installations
• Cast brass housing
• Clear polycarbonate lens
• Reflective interior
• 1/2 in. NPT mounting connection
• Lifetime warranty

Common Uses:

• Pathway lighting along walls
• Landscape beds beside retaining walls
• Walkways near building foundations
• Low-voltage outdoor accent lighting

Technical Specifications:

• SKU: 489905
• Fixture Type: Half-cut path light
• Housing: Cast brass
• Lamp Type: Compatible 12V bi-pin
• Lamp Included: No
• Stem Included: No
• Mounting: 1/2 in. NPT
• Dimensions: 4.1 in. height x 6.5 in. overall width
• Warranty: Lifetime

Compatibility and Installation Notes:

The lamp and stem are sold separately. Select a compatible 12V bi-pin lamp and Dauer stem for the planned installation, and verify transformer capacity before connecting the fixture.

FAQ:

Is a lamp included with the Omni fixture?
No. A compatible 12V bi-pin lamp is required and sold separately.

Is the stem included?
No. The stem is sold separately.

Where is this half-cut design commonly installed?
It is intended for areas next to walls or other vertical surfaces where a full round path-light hat may not fit.
