Product Overview

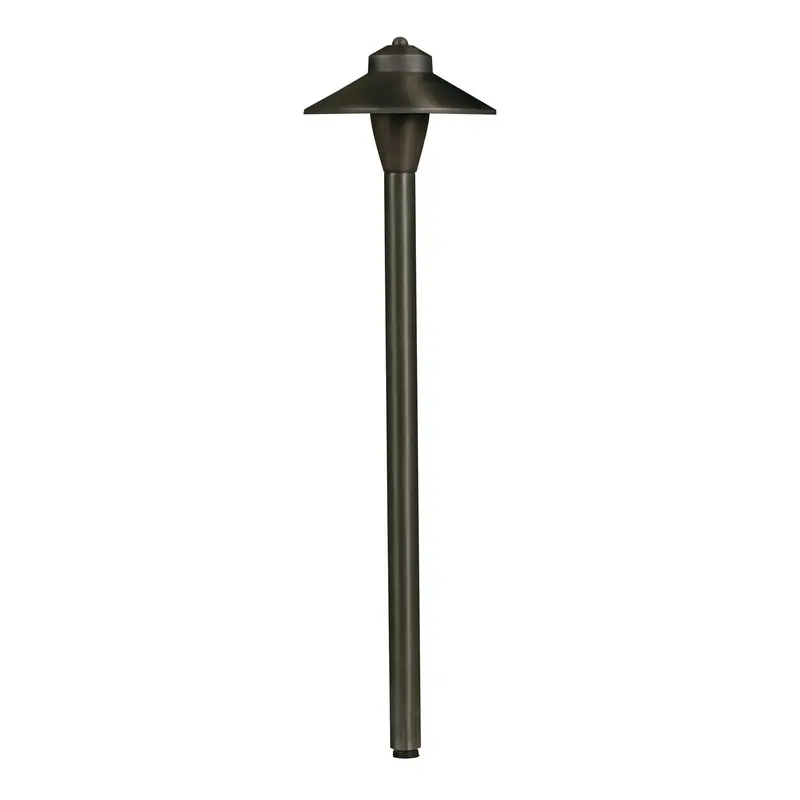

The Corona Lighting CL-653B-GM is a gun metal bayonet path light for compatible low-voltage landscape lighting. Lamp is not included, so the selected compatible S.C. bayonet lamp determines the final light output.
The solid brass stem and adjustable shade provide a traditional path-light form while allowing the light distribution to be refined for walks, garden borders, and planting areas. Select a compatible S.C. bayonet lamp by voltage, wattage, output, size, and color, and include its load in transformer calculations. Plan the shade height and fixture spacing before installation, secure the spike in stable soil, route the direct-burial cable for landscape maintenance, and use suitable outdoor connections. Cable gauge and transformer taps should account for the run length and expected voltage drop.
Key Features:
- Gun metal bayonet path light
- Adjustable-height brass shade for light control
- Solid brass stem with 1/2 in. NPT bottom
- Clear glass cover over lamp
- S.C. bayonet socket with tool-free lamp access
- Prewired with 18-2 direct burial cord
- Injection molded spike included
- Lamp sold separately
Common Uses:
- Walkway and path lighting
- Garden bed edge lighting
- Low-voltage landscape area lighting
Technical Specifications:
- Brand: Corona Lighting
- SKU: CL-653B-GM
- Finish: Gun Metal
- Stem: Solid brass pipe with 1/2 in. NPT bottom
- Accepted Lamp: 12V S.C. bayonet, 27W maximum
- Wiring: 18-2 direct burial cord
- Warranty: Limited lifetime warranty on fixture housing and stem
Dimensions:
- Overall Height: 22-5/8 in.
- Hat Height: 2-3/8 in.
- Overall Hat Diameter: 6 in.
Installation & Compatibility Note:
Remote 12V transformer required. Confirm compatible bayonet lamp type, voltage range, transformer requirements, mounting location, and local electrical requirements before installation.
FAQ
Is a lamp included?
No, the compatible bayonet lamp is sold separately.
What lamp type does it accept?
It is listed for compatible 12V S.C. bayonet lamps, 27W maximum.
Can the shade be adjusted?
Yes, the brass shade is listed as adjustable in height for light control.
