Product Overview

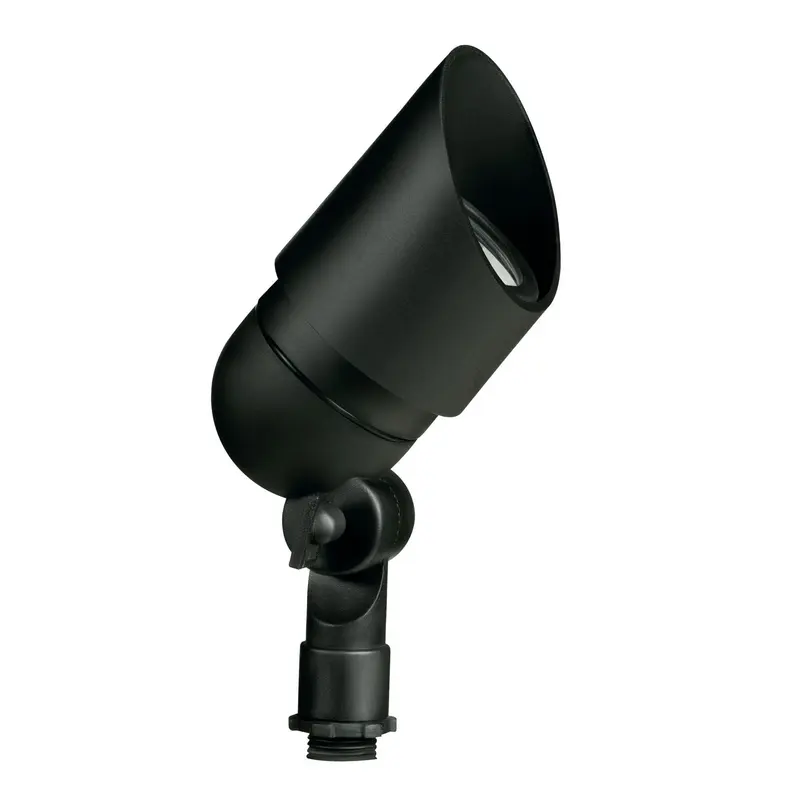

The Corona Lighting CL-505-BK is a black MR16 directional light for compatible low-voltage landscape accent lighting. Lamp is not included, so the selected compatible MR16 lamp determines output, beam spread, and color temperature.
The diecast aluminum housing, rotatable shroud, adjustable knuckle, and included ground spike allow the fixture to be positioned and aimed toward trees, shrubs, walls, signs, or architectural details. Select the MR16 lamp according to the required throw distance, brightness, beam angle, and color appearance, while staying within the fixture’s listed voltage and wattage limits. Include the chosen lamp load when sizing the remote transformer, and account for cable length and voltage drop across the complete run. Confirm soil stability, aiming clearance, direct-burial connections, and access for future lamp replacement before installation.
Key Features:
- Black MR16 directional light
- Diecast aluminum housing and shroud
- 360-degree rotatable shroud
- Clear tempered heat-resistant glass lens
- Adjustable knuckle with wing screw
- Prewired with 3 ft 18-2 SPT1-W direct burial cord
- 8.5 in. black ABS spike included
- Lamp sold separately
Common Uses:
- Landscape accent lighting
- Tree, shrub, and architectural uplighting
- Low-voltage outdoor lighting layouts
Technical Specifications:
- Brand: Corona Lighting
- SKU: CL-505-BK
- Finish: Black
- Accepted Lamp: 12V MR16, 35W maximum
- Socket: Ceramic bi-pin with retention clip
- Wiring: 3 ft 18-2 SPT1-W direct burial cord
- Warranty: 1-year fixture housing warranty
Dimensions:
- Diameter: 2.5 in.
- Length: 5 in.
Installation & Compatibility Note:
Remote 12V transformer required. Confirm compatible lamp type, voltage range, transformer requirements, wire connections, mounting location, and local electrical requirements before installation.
FAQ
Is a lamp included?
No, the compatible MR16 lamp is sold separately.
What lamp type does it accept?
It is listed for compatible 12V MR16 lamps, 35W maximum.
What is included for mounting?
An 8.5 in. black ABS spike is listed as included.
