Product Overview

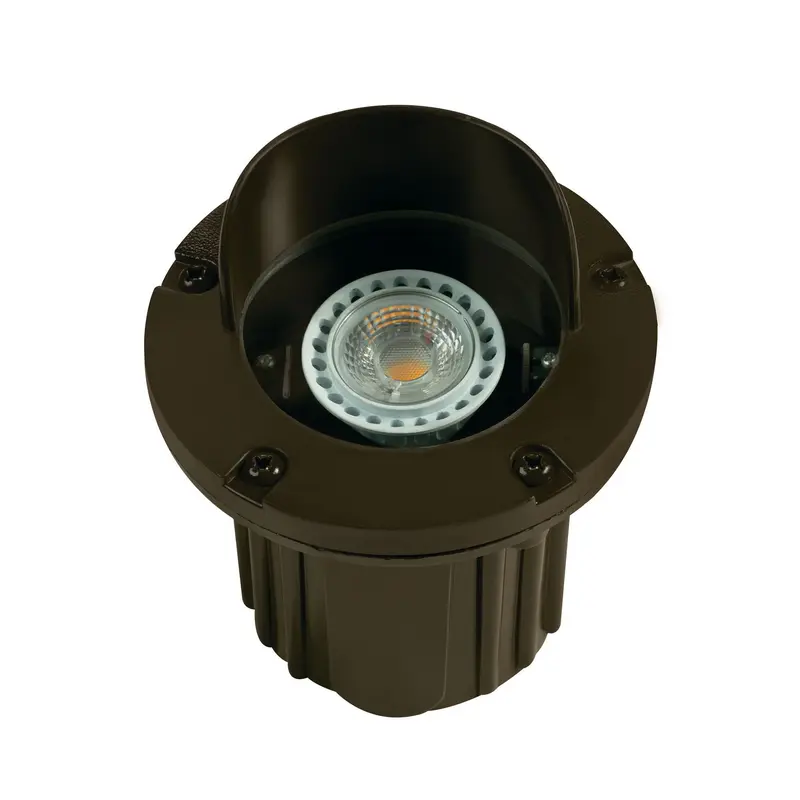

The Corona Lighting CL-338-BZ is a bronze MR16 well light for installing a selectable low-voltage accent lamp at grade. The composite housing and faceplate protect an adjustable ceramic bi-pin socket behind a flat heat-resistant glass lens. Because the compatible 12V MR16 lamp is sold separately, the final output can be selected for the scale and distance of the tree, wall, column, or landscape element being illuminated.
Confirm the lamp’s physical dimensions, voltage, wattage, beam angle, color temperature, and suitability for the fixture before ordering. The selected lamp load must be included in transformer sizing along with every other fixture on the circuit. Prepare the well-light location for drainage, direct-burial wiring, and future access, and use the documented burial or concrete-encasement method. Cable length and voltage drop should guide the wire gauge and transformer tap used for the lighting run.
Key Features:
- Bronze MR16 well light
- Injection molded composite housing and faceplate
- Clear heat-resistant flat glass lens
- Adjustable ceramic bi-pin socket with retention clip
- Prewired with 3 ft 18-2 SJT-W direct burial cord
- Designed for in-ground direct burial or concrete encasement
- Lamp sold separately
Common Uses:
- In-ground landscape uplighting
- Tree and architectural accent lighting
- Low-voltage outdoor lighting projects
Technical Specifications:
- Brand: Corona Lighting
- SKU: CL-338-BZ
- Finish: Bronze
- Housing: Injection molded composite
- Lens: Clear heat-resistant flat glass
- Accepted Lamp: 12V MR16, 50W maximum
- Wiring: 3 ft 18-2 SJT-W direct burial cord
- Warranty: Limited 10-year fixture warranty
Dimensions:
- Overall Height: 4-5/8 in.
- Diameter: 4-7/8 in.
Installation & Compatibility Note:
Remote 12V transformer required. Confirm compatible lamp type, voltage range, transformer requirements, burial or concrete mounting method, and local electrical requirements before installation. Concrete pour kit CX-237 is listed for concrete mounting applications.
FAQ
Is a lamp included?
No, the compatible MR16 lamp is sold separately.
What lamp type does it accept?
It is listed for compatible 12V MR16 lamps, 50W maximum.
How is it commonly mounted?
It is listed for in-ground direct burial or concrete encasement.
