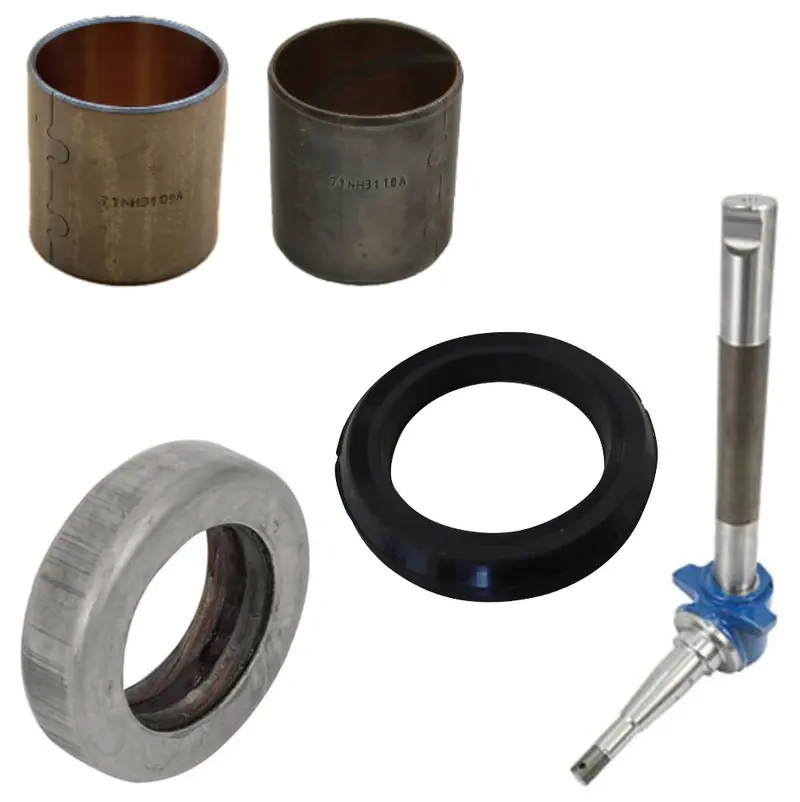

C5NN3106D LH Spindle Kit Fits Ford/New Holland

Aftermarket LH Spindle Kit

Tech Info:
 -(1) Left Hand Spindle
 -11.687″ Long
 -1.25″ Upper Diameter
 -1.340″ Lower Diameter
 -1.25″ Inner Stub Diameter
 -0.750″ Outer Stub Diameter
 -Keyway is 0.235″ W x 0.914″ L
 -Replaces Part Numbers: C5NN3106D, F2NN3106AA, C5NN3106RV
 -
 -(1) Thrust Bearing
 -Bearing Type Spindle Bearing
 -Grease Greaseable
 -ID 1.350″
 -ID Type Round
 -OD 2.200″
 -Sourced Import
 -Width Overall 0.620″
 -Replaces Part Number: 957E3123A
 -
 -(1) Front Spindle Bushing
 -4 used per tractor
 -1.255″ inside diameter
 -1.378″ outside diameter
 -1.498″ long
 -Must be honed or reamed to size when installed
 -Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940
 -
 -(1) Spindle Bushing
 -ID 1.350″
 -Material Steel
 -OD 1.480″
 -Width 1.500″
 -Replaces Part Numbers: 957E3110B
 -
 -(1) Spindle Seal
 -33mm ID
 -44mm OD
 -Replaces Part Numbers: 8N3528, ESL10547

Fits Ford/New Holland:
 Tractor Models: 2000, 2600, 2610, 3000, 3600, 3610, 3900, 4100
 Model Breaks: 1965-75 Vineyard – 2000, 30001976-81 without Cab – 2600, 2610, 3600, 3610, 3900, 4100
 Replaces Part Number(s): C5NN3106D, F2NN3106AA, C5NN3106RV
