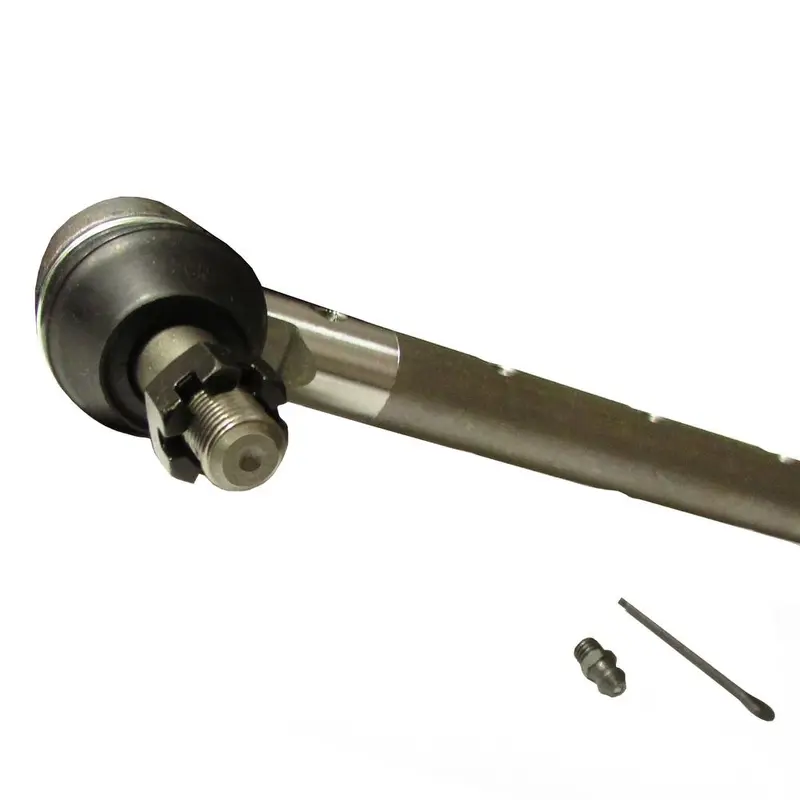

AR63592 Outer Tie Rod Fits John Deere 4030 4040 4050 4055 4230 4240 4250+

One New Aftermarket Replacement Outer Tie Rod for John Deere (JD) Tractors and Cotton Pickers

This aftermarket replacement outer tie rod fits the front axle steering assembly on John Deere 40-series and 55-series tractors as well as 9910 and 9920 cotton pickers equipped with a standard adjustable or regular wide front axle. The rod tube features 8 cross holes for length adjustment and is a direct replacement for John Deere OEM part number AR63592.

Specifications

• Length: 16.00″
• Outer Diameter: 1.00″
• Cross Holes: 8 (2″ spacing)
• Stud Size: 0.625″
• Threads Per Inch: 18

Compatible Models

John Deere Tractors (Regular/Wide Front Axle): 4030 (w/ Regular Wide Front Axle), 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455

John Deere Cotton Pickers (Regular Wide Front): 9910, 9920

Replaces Part Number(s):

AR63592, AR63592-A

Aftermarket Interchange Numbers

A-AR63592, TP-AR63592

New aftermarket replacement part – not remanufactured, not used.
