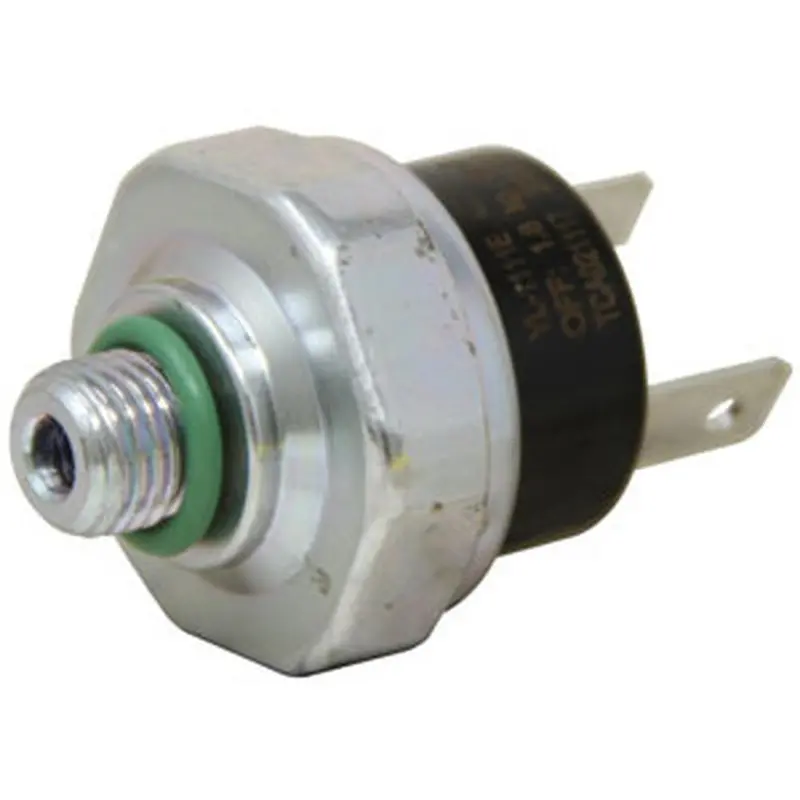

A-220-413-AI Low Pressure Cut-Out Switch

One New Aftermarket Replacement Low Pressure Cut-Out Switch for White, Allis-Chalmers, and International/Farmall Tractors and Sprayers

This air conditioning low pressure cut-out switch mounts on the receiver-drier and protects the A/C compressor by cutting out the system when refrigerant pressure drops below a safe threshold. It is a normally open (N.O.) switch that closes at approximately 35 PSI and opens at approximately 25 PSI. Compatible with R12 and R134a refrigerant systems. Features a 2-spade terminal connection and a 3/8″-24 male thread fitting for drier-mounted installation.

Specifications

• Type: Low Pressure Cut-Out Switch, Normally Open (N.O.)
• Close Pressure: ~35 PSI
• Open Pressure: ~25 PSI
• Thread Size: 3/8″-24 male
• Terminals: 2 spade
• Refrigerant Compatibility: R12 / R134a
• Mount Location: Receiver-Drier

Compatible Models

White / AGCO-White Tractors: 2-105, 2-110, 2-135, 2-135 Series III, 2-155, 2-155 Series III, 2-180, 2-180 Series III

Allis-Chalmers Tractors: 4W-220, 4W-305, 6060, 6070, 6080, 8010, 8030, 8050, 8070, 8785, 9130, 9150, 9170, 9190, 9435, 9455, 9630, 9635, 9650, 9655, 9675, 9695, 9815

International / Farmall Tractors: 4366, 4386, 4568, 4586, 4786

Ag-Chem Sprayers: RG900, RG1100, RG1300

Replaces Part Number(s):

30-3350991, 70264650, 72162165, 72514245

New aftermarket replacement part – not remanufactured, not used.
