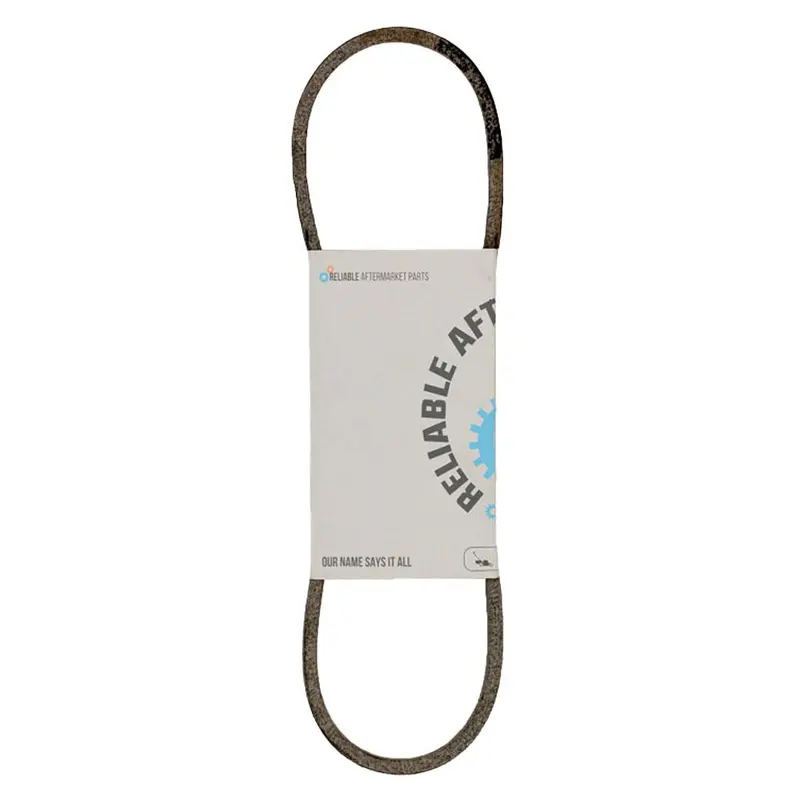

One New Aftermarket Replacement Forward Drive V-Belt for Ariens, Toro, Troy-Bilt, MTD, and John Deere Tillers and Snow Blowers
This 3L-section wrapped forward drive V-belt transmits power from the engine to the forward drive system on a wide range of Ariens (and Gravely) tillers, Toro snow blowers, Troy-Bilt and MTD tillers and snow removal equipment, and select John Deere models. Built with an aramid (Kevlar) cord core for superior strength, heat resistance, and long service life in demanding outdoor power equipment applications.
Specifications
- Belt Type: 3L-Section Wrapped V-Belt
- Top Width: 3/8 in
- Outside Circumference Length: 29 in
- Depth: 7/32 in
- Material: Aramid Cord
- Color: Blue
Compatible Models
Ariens Tillers: 5, 5A, 5B, 6-7211, 520, 520H, 30 (3HP), 824, 826T, 724
Ariens Snow Blowers: 901026, 901026 HT7018
Toro Snow Blowers: 38051, 38052, 38052C, 38054, 38056, 38056C, 38240, 38250, 38605 522
Troy-Bilt / MTD Tillers: 21A-492R766 Pony, 21A-495B766 Proline FRT, 21A-692R766 Pony, 21A-695B766 Pro-Line FRT, 21A-70M8711 Bronco AXIS, 21A-70M8766 Bronco AXIS, 21A-70M8766 Vertical Tine, 21AE492K766 Pony ES, 21B-34M8711 Colt FT, 21D-64M1011 Bronco, 21D-64M1066 Bronco, 21D-64M7711 Bronco, 21D-64M7766 Bronco, 21D-64M8711 Bronco, 21D-64M8766 Bronco, 21D-644D211 Bronco, 21D-644D266 Bronco, 21D-65M1011 Super Bronco, 21D-65M1066 Super Bronco, 21D-65M7711 Super Bronco, 21D-65M7766 Super Bronco, 21D-65M8711 Super Bronco, 21D-65M8766 Super Bronco, 21D-654D211 Super Bronco, 21D-654D266 Super Bronco, 21D-655A711 Pro-Line CRT, 21D-655A766 Pro-Line CRT, 21D-655A766 Vertical Tine
Replaces Part Number(s):
07238000, 72082, 07208200, 3L290K, A-3L290K, B1G6729, M44178, 754-0256, 954-0256, 95404091
Aftermarket Interchange Numbers
3L290K (Gates/standard belt cross-reference); 706-15916 (superseded by 754-0256 / 954-0256)
New aftermarket replacement part – not remanufactured, not used.
