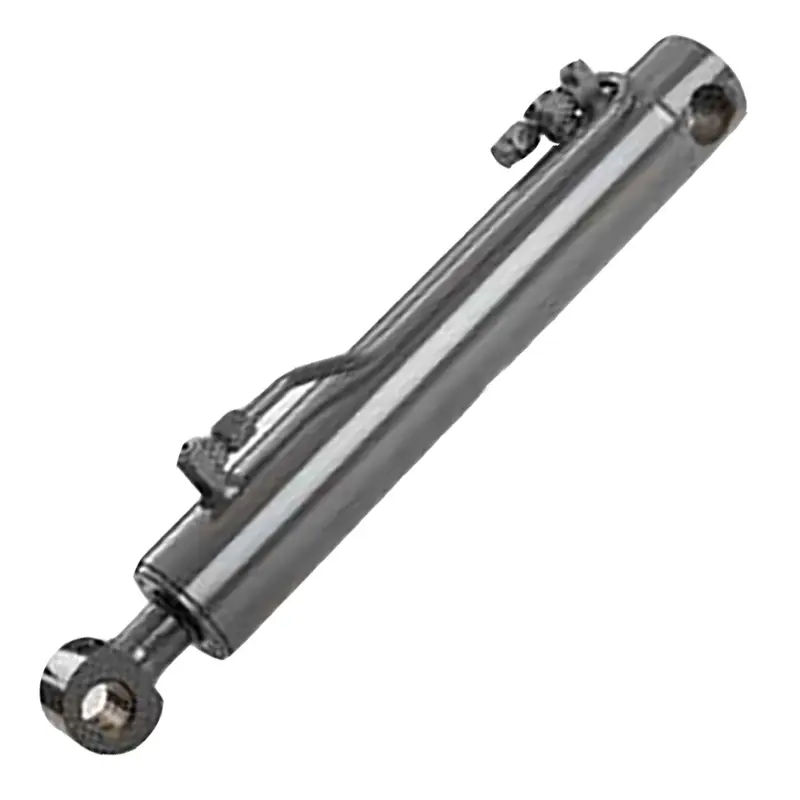

7208419 Hydraulic Bucket Tilt Cylinder 3″ Bore Fits Bobcat S220 S250 S300

One New Aftermarket Replacement Hydraulic Bucket Tilt Cylinder for Bobcat Skid Steer Loaders and Track Loaders

This aftermarket replacement hydraulic bucket tilt cylinder controls bucket tilt and dump functions on Bobcat skid steer and compact track loader models. The double-acting cylinder features a hardened chrome-plated rod, cast iron piston, and cast iron gland with buttress threads — an upgrade over the aluminum OEM gland that reduces the risk of galled or damaged threads. Seals are rated for 250 degrees F and up to 7,250 psi for extended service life. Replaces Bobcat OEM part number 7208419, which superseded previous OEM number 6810233.

Specifications

• Bore: 3.0″
• Rod: 1.5″
• Stroke: 15.0″
• Retracted (closed) length: 24″ pin to pin
• Pressure rated: 3,000-3,500 psi operating; seals rated to 7,250 psi
• Seal temperature rating: 250 degrees F
• Ports: SAE and JIC flared ports
• Grease ports on both pin eyes
• Cast iron piston and cast iron gland with buttress threads
• Hardened chrome-plated rod

Compatible Models

Bobcat Skid Steer Loaders: A300, S220, S250, S300, S330

Bobcat Compact Track Loaders: T250, T300, T320

Replaces Part Number(s):

7208419

Supersedes

Supersedes previous Bobcat OEM number: 6810233

New aftermarket replacement part – not remanufactured, not used.
