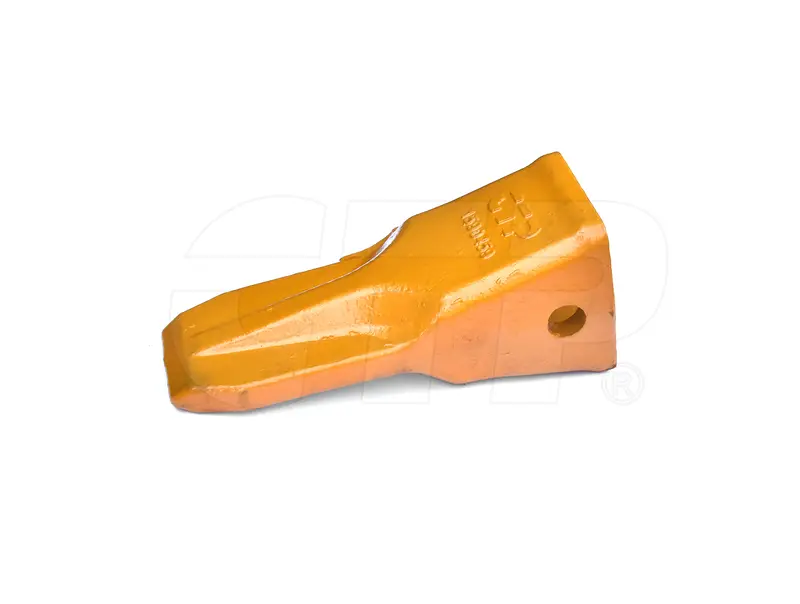

1590459 Tip-Penetration Plus Fits Caterpillar Models

One New Aftermarket Replacement Penetration Plus Bucket Tooth Tip for Caterpillar (Cat) Excavators

This aftermarket replacement Penetration Plus bucket tooth tip fits the Caterpillar (Cat) J450 Ground Engaging Tool (GET) system used on 35-40 ton class excavators. The Penetration Plus profile delivers a low-profile, sharp tip geometry engineered for hard-ground digging, rock penetration, and demanding earthmoving applications. The tip mounts to a J450-series adapter using an 8E0468 pin and 8E8469 sleeved keeper. The alternate OEM part number for this tip is 159-0459.

Specifications

• Tooth System: Caterpillar J450 Side-Pin Series
• Machine Size Class: 35-40 ton excavator
• Weight: Approx. 12.7-13.8 kg (28-30 lbs)
• Pin Required: 8E0468
• Keeper Required: 8E8469

Compatible Models

Caterpillar Excavators: 323D L, 323D2 L, 324D, 324D L, 325C, 325D, 325D L, 325F LCR, 326D L, 326D2, 326D2 L, 326F, 326F L, 326F LN, 329D, 329D L, 329D2, 329D2 L, 329F L, 330, 330C, 330C L, 330C LN, 330D, 330D L, 330D2, 330D2 L, 330F, 330F L, 330 GC, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 L XE, 336D2 LXE, 336D2 XE, 336E L, 340D L, 340D2 L, 345B II

Replaces Part Number(s):

1590459, 159-0459, 9W8452V, 9W-8452V

Aftermarket Interchange Numbers

9W8452RC, 9W-8452RC, 1U3452RC, 1U-3452RC, 7T8459RC

New aftermarket replacement part – not remanufactured, not used.
